3A Series Programmable AC & DC Loads

Key Features

Programmable AC & DC LOADS – Applications:

Load Versatility

All ASP 3A Series Loads are equipped with a powerful microcontroller and user friendly controls to provide capabilities that cover a wide range of load applications. Built in metering of Voltage, Current, Power and Resistance standard. With its ability to operate in both AC or DC mode, the 3A Series provides great versatility for any lab or test floor.

AC Power Source Testing (AC Mode)

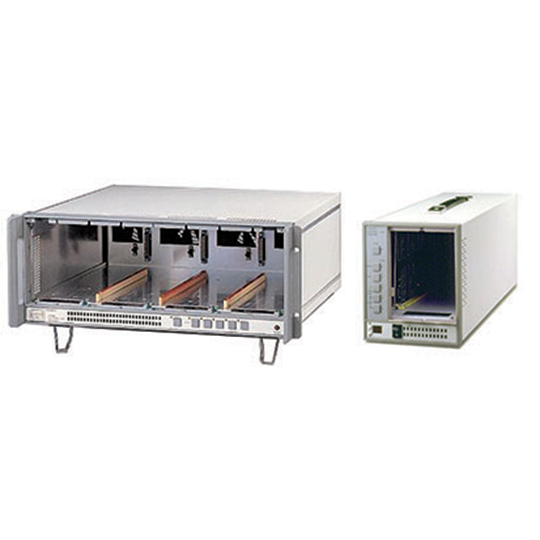

With its ability to simulate various power factor and crest factor AC load conditions, the APS 3A Series is an excellent real-world test solution for AC Power Sources and any other DC/AC inverter or AC/AC converter product. With up to four AC load channels per mainframe, high speed testing of AC products can be accommodated with four units being tested simultaneously, achieving significant test throughput in high voltage production environments.

DC Inverter Supply Design (AC Mode)

With built-in features like Over Current Protection (OCP) test and Over Power Protection (OPP) test and dynamic constant current waveform testing, new power supply designs can be thoroughly evaluated against design specifications. An analogue input mode allows arbitrary current waveforms to be applied to a unit under test as well.

Battery Charge/Discharge Testing (DC Mode)

Using the DC load mode, specific discharge current levels can be set as a function of battery voltage. This allows characterization and performance testing of various battery chemistries. AC/DC supplies and inverters can be tested in DC mode as well.

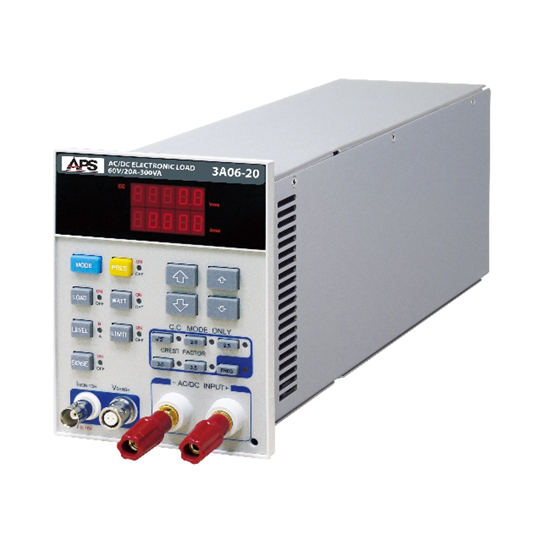

Single Channel Modules
