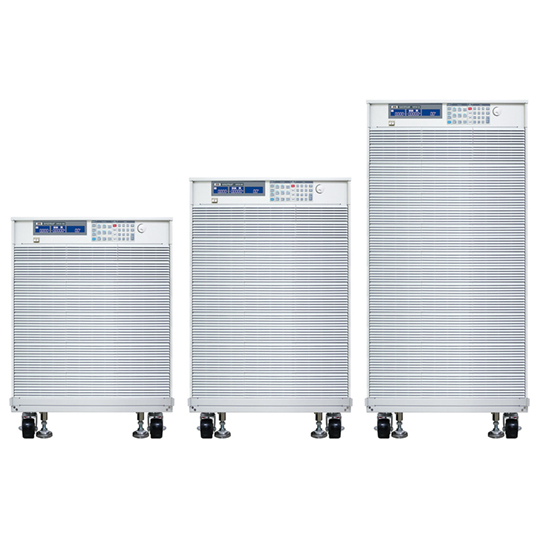

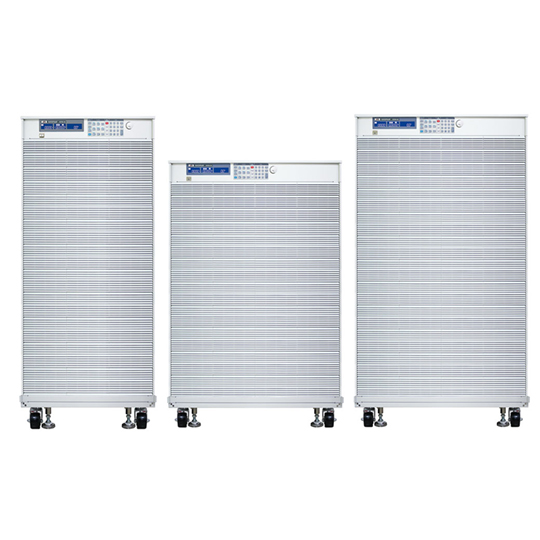

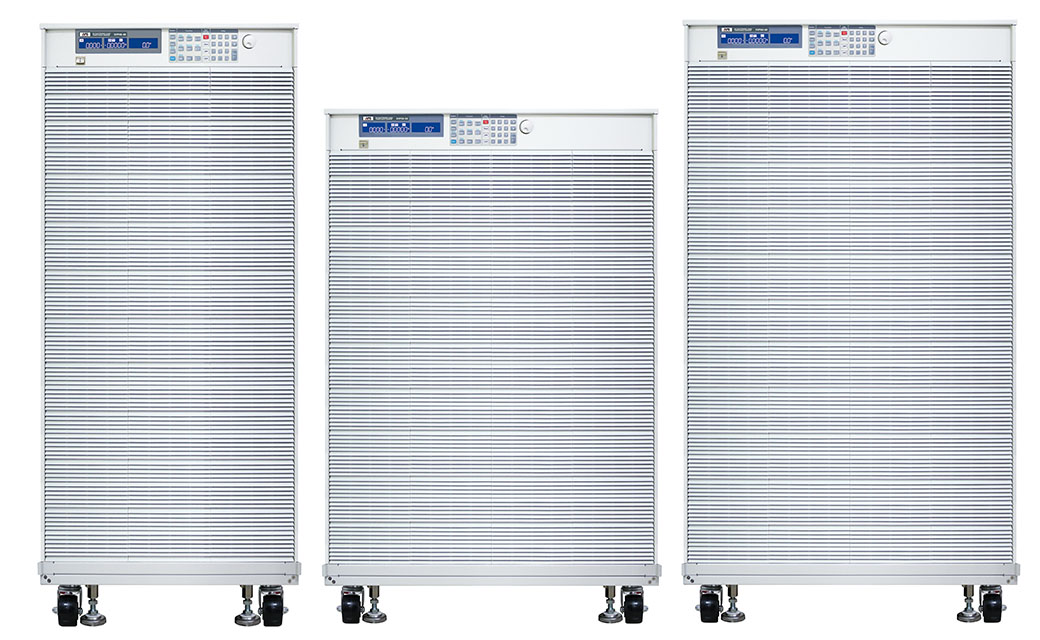

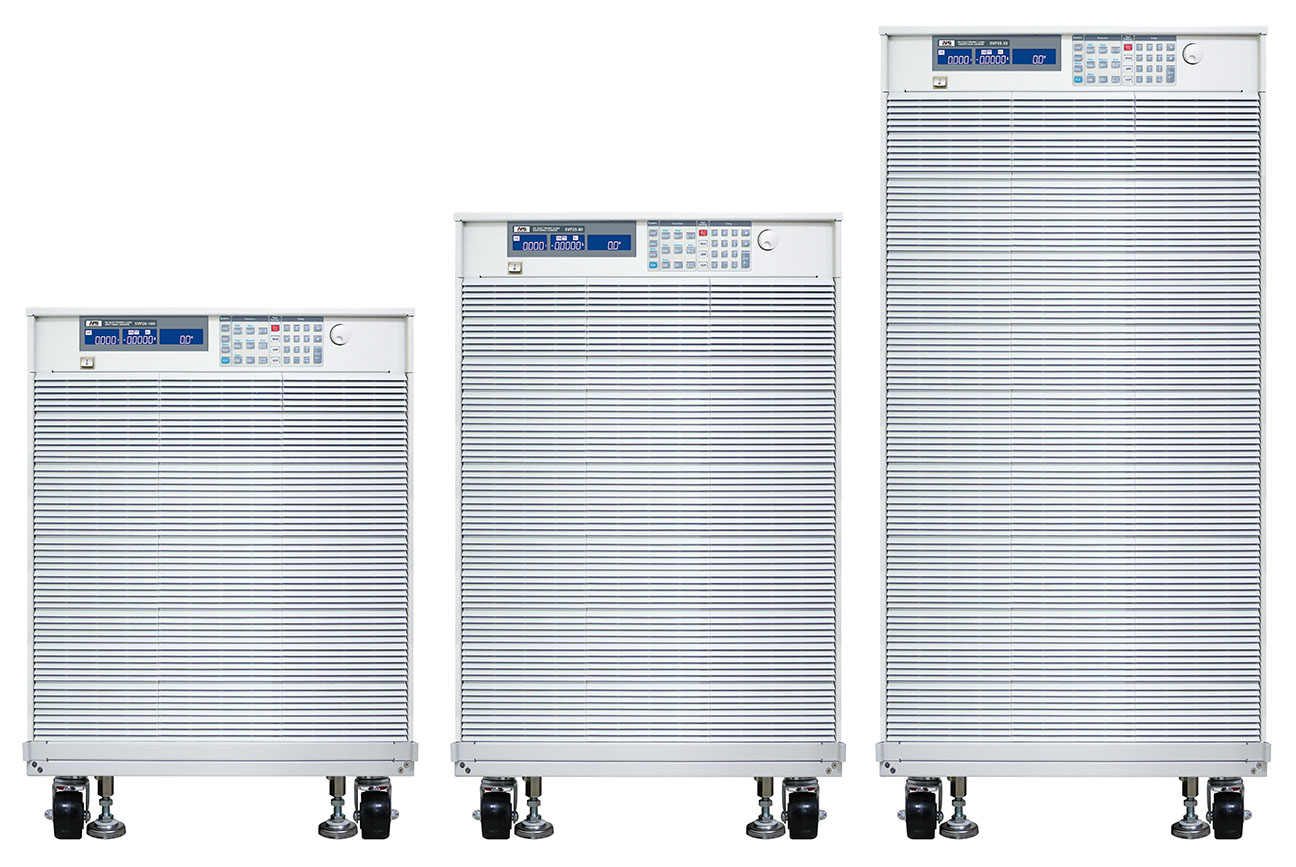

5VP Series DC Load

Key Features

• Up to 60kW per Cabinet
• Low Voltage Range, 0 – 6 Vdc
• Voltages up to 1000Vdc
• Current Ranges up to 1000 Adc
• High-Speed 5 Digit Precision Metering Capability
• Parallel Operation for High Power Applications
• Compact Design
• Movable Cabinet on lockable Casters
• Operating Modes: CC, CP, CR and CV
• Built-in Short Circuit Test
• Over Current Protection Test Mode
• Over Power Protection Test Mode
• Static and Dynamic CC Modes
• Available Interface Options are USB, RS232, GPIB and LAN

Applications:

Load Versatility

All APS 5VP Series Loads are equipped with a powerful microcontroller and user friendly controls to provide capabilities that cover a wide range of load applications. Precision metering of Voltage, Current, Power and Resistance is standard.

Power Supply Testing

Elaborate testing of linear and switch mode AC/DC power supplies at high speeds is made possible by flexible ranging and wide V-I operating curves found in all 5VP Series APS loads. This supports high throughput production test and burn-in of small and large AC/DC power supplies.

Power Supply Design

With built-in features like over current protection (OPC) test and over power protection (OPP) test and dynamic constant current waveform testing, new power supply designs can be thoroughly evaluated against design specifications. An analog input mode allows arbitrary current waveforms to be applied to a unit under test as well.

Battery Charge/Discharge Testing

Time sequencing of specific discharge current levels as a function of battery voltage allows characterization and performance testing of various battery chemistries. The high current resolution and accuracy of the 5VP Series load supports testing of both small and large batteries.

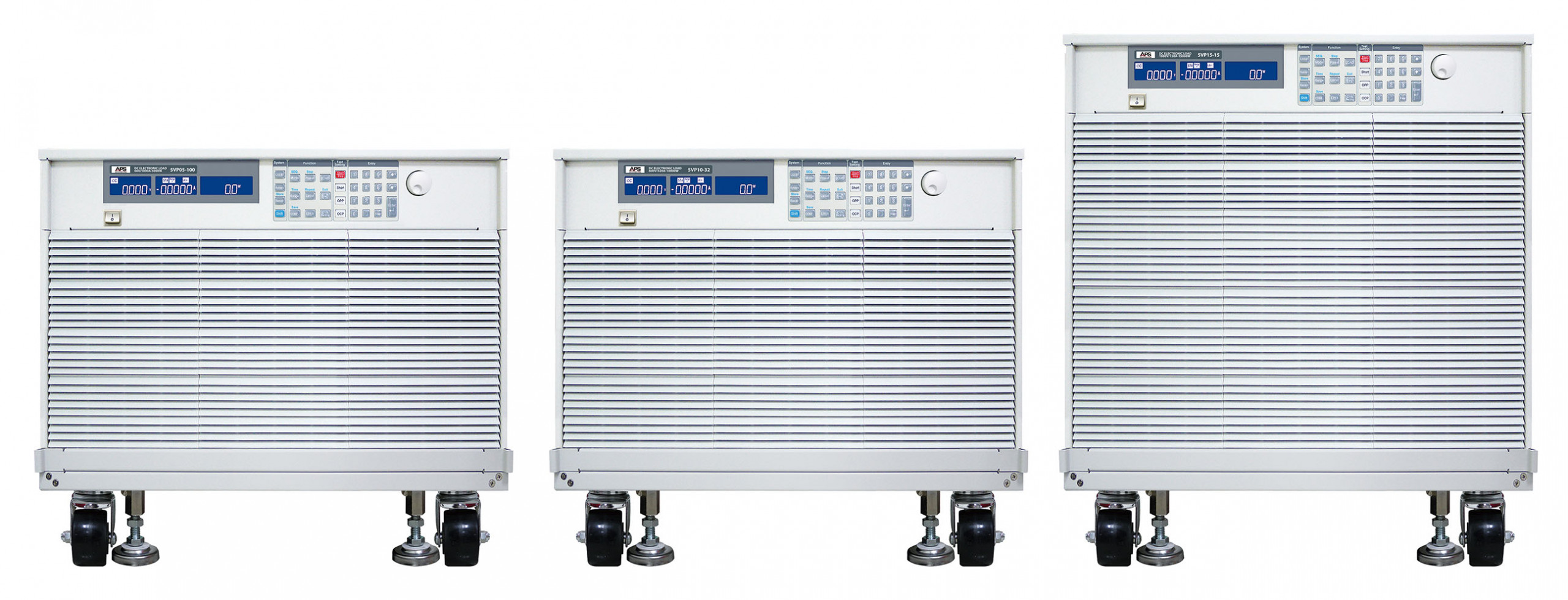

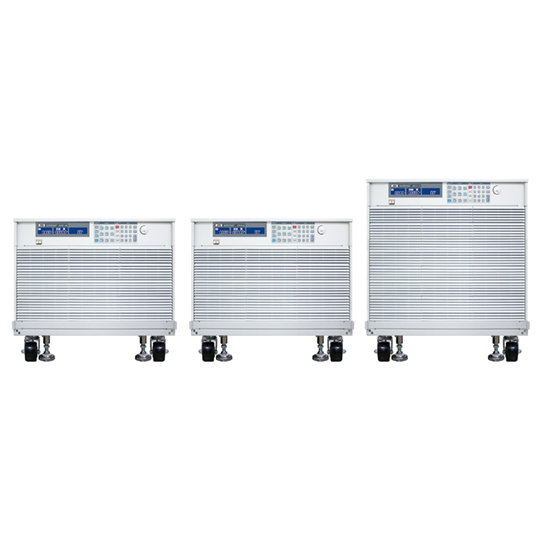

5VP Models – 5KW – 30KW / 60V
