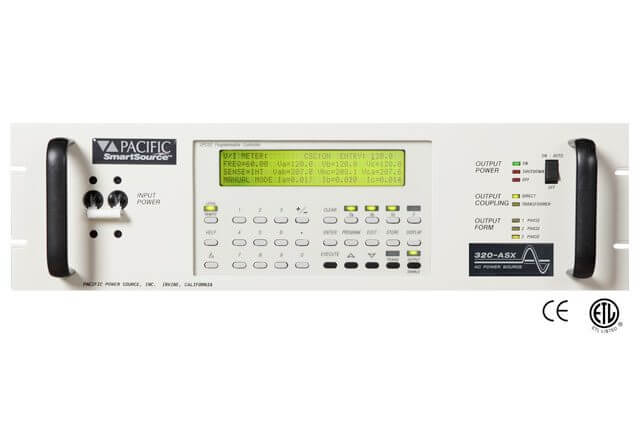

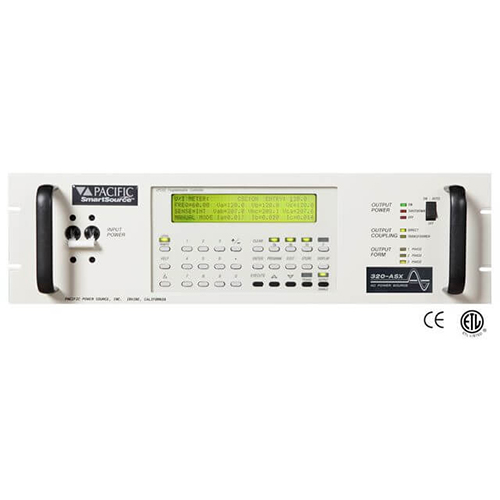

ASX Series Switching AC Power Sources

ASX Series Switching AC Power Sources

The ASX Series is a family of high performance switching AC Power Sources covering the power range from 1.5kVA to 12kVA. The product line offers both single and three phase models. Units are conservatively designed and output power ratings are based on the most severe combination of input line, output voltage, power factor, and temperature.

Great emphasis has been placed on low acoustic noise, ease of installation, and maximum power per cubic inch of rack space. Control and operational features provide a high degree of application versatility and ease of use for the test engineer. Applications range from simple, manually controlled frequency conversion to harmonic testing and sophisticated bus programmable transient simulation.

Power conversion within the ASX Series is achieved by high frequency pulse width modulation, resulting in cool, quiet and efficient operation.

3-PHASE MODEL:

Model	Power rated (VA)	Output Volts Max(VRMS) Direct	Output Volts-Max (VRMS) Transformer	Output Amps Direct (ARMS)	Output Amps-Max (ARMS) Transformer	Frequency Range (Hz)	Input Power Form	Panel High (U)	Data Sheets
315ASX	1500	1Ø: 132/2643Ø: 132	–	1Ø: 12/83Ø: 4/Ø	–	15-1200	1Ø	3
320ASX	2000	1Ø: 150/3003Ø: 150	–	1Ø: 20/123Ø: 7/Ø	–	15-1200	1Ø	3
345ASX	4500	1Ø: 135/2703Ø: 135	–	1Ø: 36/123Ø: 12/Ø	–	15-1200	3Ø	5
345ASXT	4500	1Ø:135/2703Ø: 135	a=1,5:1(1/2Ø):202/404  a=1,5:1 (3Ø): 202/350 a=2,0:1(1/2Ø):270/540  a=2,0:1 (3Ø): 270/468 a=2,5:1(1/2Ø):338/600  a=2,5:1(3Ø):338/585	1Ø: 36/123Ø: 12/Ø	a=1,5:1(1Ø):24/8  a=1,5:1(3Ø): 8/Ø a=2,0:1(1Ø):18/6 a=2,0:1 (3Ø):6/Ø  a=2,5:1(1Ø):14,4/4,8  a=2,5:1 (3Ø): 4,8/Ø	15-1200	3Ø	8
360ASX	6000	1Ø: 135/2703Ø: 135	–	1Ø: 48/163Ø: 16/Ø	–	15-1200	3Ø	5
360ASXT	6000	1Ø: 135/2703Ø: 135	a=1,5:1(1/2Ø):198/396  a=1,5:1 (3Ø): 198/343 a=2,0:1(1/2Ø):264/528  a=2,0:1 (3Ø): 264/457 a=2,5:1(1/2Ø):330/600  a=2,5:1 (3Ø): 330/572	1Ø: 48/163Ø: 16/Ø	a=1,5:1(1/2Ø):32/10,7  a=1,5:1 (3Ø): 10,7/Ø a=2,0:1 (1/2Ø): 24/8  a=2,0:1 (3Ø): 8/Ø  a=2,5:1(1/2Ø):19,2/6,4  a=2,5:1 (3Ø): 6,4/Ø	15-1200	3Ø	8
390ASX	9000	1Ø: 135/2703Ø: 135/234	–	1Ø: 72/363Ø: 24/Ø	–	15-1200	3Ø	9
390ASXT	9000	1Ø: 135/2703Ø: 135/234	a=1,5:1(1/2Ø):202/404  a=1,5:1 (3Ø): 202/350 a=2,0:1(1/2Ø):270/540  a=2,0:1 (3Ø): 270/468 a=2,5:1(1/2Ø):338/600  a=2,5:1 (3Ø): 330/585	1Ø: 72/363Ø: 24/Ø	a=1,5:1 (1/2Ø): 48/24 a=1,5:1 (3Ø): 16/Ø a=2,0:1 (1/2Ø): 36/18 a=2,0:1 (3Ø): 12/Ø a=2,5:1(1/2Ø):28,8/14,4  a=2,5:1 (3Ø): 9,6/Ø	15-1200	3Ø	13
3120ASX	12000	1Ø: 135/2703Ø: 135/234	–	1Ø: 96/483Ø: 32/Ø	–	15-1200	3Ø	9
3120ASXT	12000	ppppppppppp1Ø: 135/2703Ø: 135/234	a=1,5:1 (1/2Ø):202/404 a=1,5:1 (3Ø): 202/350 a=2,0:1(1/2Ø):270/540  a=2,0:1 (3Ø): 270/468 a=2,5:1(1/2Ø):338/600  a=2,5:1 (3Ø): 330/585	1Ø: 96/48 3Ø: 32/Øpppppppp	a=1,5:1 (1/2Ø): 64/32  a=1,5:1 (3Ø): 21,3/Ø a=2,0:1 (1/2Ø): 48/24  a=2,0:1 (3Ø): 16/Ø a=2,5:1(1/2Ø):38,4/19,2  a=2,5:1 (3Ø): 12,8/Ø	15-1200	3Ø	13

Applications

AC Test Power

The ASX Series Power Source is equipped with a powerful micro-controller to create a fully integrated test system. It supplies a variety of power conditions to the device under test and meters/analyzes all output performance parameters.

Frequency/Voltage Conversion

The ASX Series is an excellent source of stable AC voltage over the frequency range of 15 to 1,200 Hz. The output frequency is quartz-crystal stabilised. Output voltages up to 600 VAC are provided.

Phase Conversion

With the ability to provide singe and three-phase outputs, the ASX Series is the perfect choice to provide 1 Phase to 3 Phase or 3 Phase to 1 Phase conversion.
