B2C – Bidirectional Battery Charger – CINERGIA

Test and Measurement

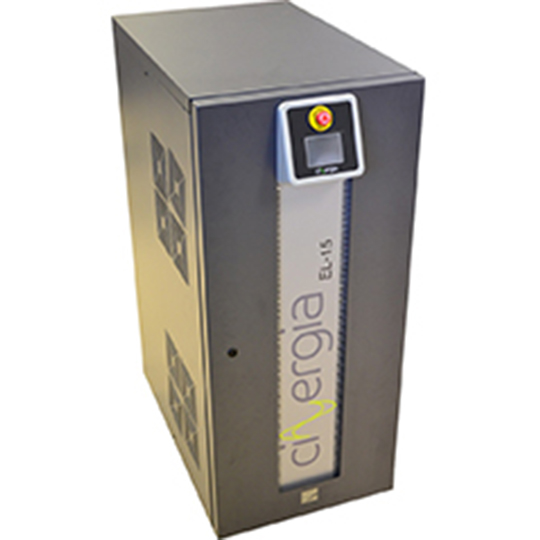

CINERGIA’s Bidirectional Battery Chargers are Programmable DC Power Supplies designed specifically to charge and discharge batteries or other storage systems. Based on the DCPS hardware and firmware, the B2C add a IU Battery Charge mode to the Voltage, Current, Power and Resistance modes.

The equipment is regenerative so the energy discharged from the battery will be injected back to the electrical grid.

Key Fetures:

  • 6.75 – 160 kW
  • 2 Quadrant Power Supply
  • Regenerative up to 100% rated power
  • 1 channel Output:
    • 0 to 750V, 0 to ±690A
  • 3 channels Output:
    • 0 to 750V, 0 to ±230A/ch
    • BC, CV, CC, CP, CR modes
  • Equalization, Boost and Float charge
  • Constant current or power discharge
Model Rated (kVA) Rated (kW) Rated Current
(3 Channels / 0-750V)
Rated Current
(1 Channel/ 0-750V)
Dimensions
B2C7.5 7.5 6.75 ±10A ±30A 770x450x1100
B2C10 10 9 ±15A ±45A 770x450x1100
B2C15 15 13.5 ±20A ±60A 770x450x1100
B2C20 20 18 ±25A ±75A 770x450x1100
B2C30 30 27 ±40A ±120A 770x450x1100
B2C40 40 36 ±50A ±150A 770x450x1100
B2C50 50 45 ±65A ±195A 770x450x1100
B2C60 60 54 ±80A ±240A 880x590x1320
B2C80 80 72 ±105A ±315A 880x590x1320
B2C100 100 90 ±130A ±390A 880x590x1320
B2C120 120 108 ±130A ±390A 880x590x1320
B2C160 160 128 ±155A ±465A 850x900x2000
B2C200 200 160 ±185A ±555A 850x900x2000
