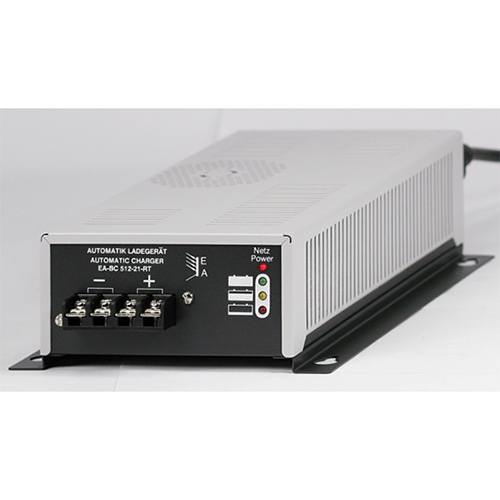

The automatic battery chargers of the series EA-BC 500 are suitable for charging lead acid batteries with a capacity up to 300Ah. The units operate using the I-U-U characteristics.
The automatic battery chargers of the series EA-BC 500 are suitable for charging lead acid batteries with a capacity up to 300Ah. The units operate using the I-U-U characteristics.
The empty battery is first charged in constant current mode until the rated voltage is reached. There follows a boost charge at constant voltage, limited to one hour. Thereafter the charger switches to trickle charge.
Three LEDs on the front are indicating the actual status of the charging mode.
| Model | Voltage (V) | Current (A) |  Power (W) |
| BC 512-11R/T | 13.8V | 11A | 150W |
| BC 524-06R/T | 27.6V | 5.5A | 150W |
| BC 512-21R/T | 13.8V | 20.5A | 300W |
| BC 524-11R/T | 27.6V | 11A | 300W |
| BC 542-06R/T | 41.4V | 6.4A | 300W |
| BC 548-06R/T | 55.2V | 5.5A | 300W |
BC 500 RT – Automatic Ba...
$1.00
