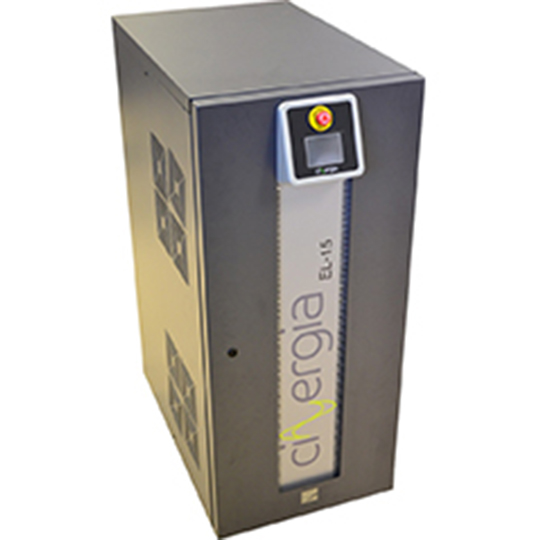

A Battery Emulator is a power electronics equipment that behaves as a real battery pack. CINERGIA’s BE is based on a regenerative power DC supply. When emulating a battery charge, the energy will be injected back to the electrical grid consuming a sinusoidal current with unity power factor and low harmonic distortion. Using a BE will save space in the laboratory, avoiding safety issues of real batteries and allow a high flexibility in the tests.
Key Features:
- 6.75 – 160 kW
- 2 Quadrant Power Supply
- Regenerative up to 100% rated power
- 1 channel Output:
- 0 to 750V, 0 to ±690A
- 3 channels Output:
- 0 to 750V, 0 to ±230A/ch
- CV, Static, and Dynamic modes
| Model | Rated kVA | Rated kW | Rated Current 3 Channels 0-750V |
Rated Current 1 Channel 0-750V |
Dimensions DxWxH (mm) |
| BE7.5 | 7.5 | 6.75 | ±10A | ±30A | 770x450x1100x770 |
| BE10 | 10 | 9 | ±15A | ±45A | 770x450x1100x770 |
| BE15 | 15 | 13.5 | ±20A | ±60A | 770x450x1100x770 |
| BE20 | 20 | 18 | ±25A | ±75A | 770x450x1100x770 |
| BE30 | 30 | 27 | ±40A | ±120A | 770x450x1100x770 |
| BE40 | 40 | 36 | ±50A | ±150A | 770x450x1100x770 |
| BE50 | 50 | 45 | ±65A | ±195A | 770x450x1100x770 |
| BE60 | 60 | 54 | ±80A | ±240A | 880x590x1320x880 |
| BE80 | 80 | 72 | ±105A | ±315A | 880x590x1320x880 |
| BE100 | 100 | 90 | ±130A | ±390A | 880x590x1320x880 |
| BE120 | 120 | 108 | ±130A | ±390A | 880x590x1320x880 |
| BE160 | 160 | 128 | ±155A | ±465A | 850x900x2000x850 |
| BE200 | 200 | 160 | ±185A | ±555A | 850x900x2000x850 |
