Kepco Power Products

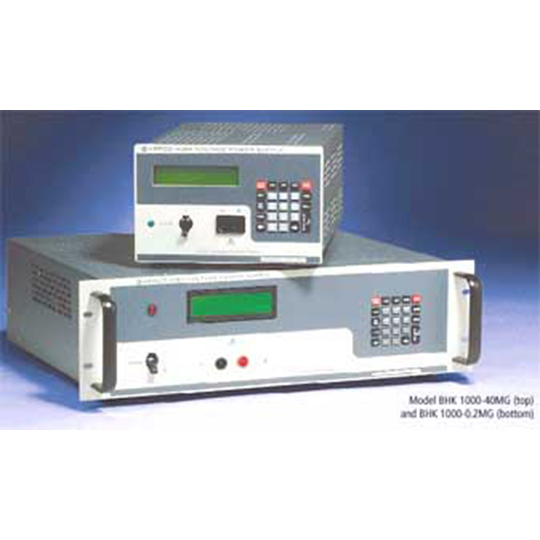

Kepco’s BHK-MG are high voltage, linear, voltage-current stabilizers with rectangular (automatic crossover) output characteristics and ultra low noise and ultra low ripple at the output. They are offered in two sizes:
- 40-watt half-rack design and
- 200-watt full-rack power supply.
The four models in each size have outputs of 0-300 volts, 0-500 volts, 0-1000 volts and 0-2000 volts. Both digital and analogue programming control is featured.
HK-MG models are designed for bench or rack mount use with both front and rear output terminals. Two operating modes are available: conventionally filtered (slow mode) for use as a fixed or slowly varied voltage source. In this mode, the output capacitor provides excellent energy storage to support transient loads. A fast mode is also available. In fast mode, the output capacitor is disconnected and the power supply depends on its fast-responding feedback loop to suppress ripple and noise. Fast mode is ideal for operation as a current source or as a rapidly programmed voltage source where the energy storage of a conventional output capacitor would inhibit the output voltage’s agility.
