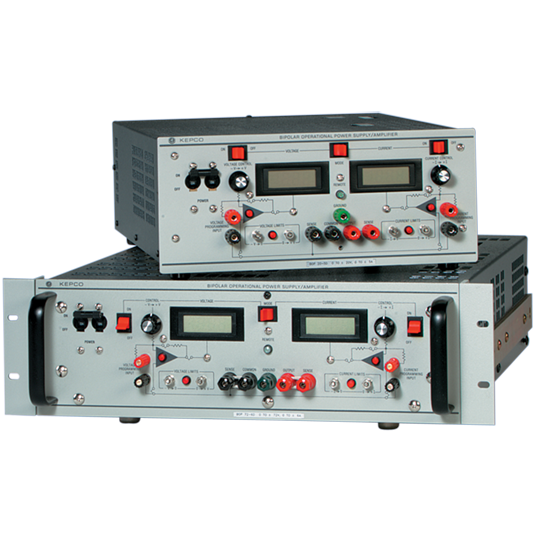

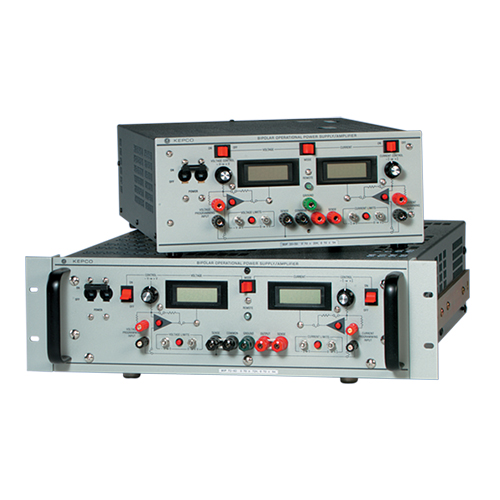

BOP-E Series – Bipolar Power Supplies

Key Features

Key Features of Bipolar Power Supplies

• 13 Standard Models:
  • ± 0-5 Volts to ± 0-200 Volts,
  • ± 0-5 Amps to ± 0-30 Amps.
• True 4-quadrant programmable voltage and current power supplies.
• Dual-range 16-bit interface provides 15 bits of resolution for both full and quarter scale output.
• Setup using a web page.
• Power supply control via web pages and socket interfaces.
• Arbitrary waveform generator supporting multiple dwell times from web page or driver calls.
• Labview G and C drivers.
• LXI version 1.4 compatible
• IP address support: DCHP, AUTOIP and Static IP (using Web Page)
• Connections: SOCKET @ port 5025 and TELNET @ port 5024
• Soft Calibration

100W Bipolar Power Supplies BOP-E Series (Ethernet Control)

• True 4-quadrant programmable voltage and current ethernet control power supplies.
• 3 Standard Models:
  • 0 to ±20 Volts, 0 to ±5 Amps,
  • 0 to 50 Volts, 0 to 2 Amps,
  • 0 to 100 Volts, 0 to 1 Amp,
• Dual-range, 16-bit interface provides 15 bits of resolution for both full and quarter scale of output.
• Inductive and capacitive load optimized versions.
• Discovery: MDNS (Bonjour – like the printer discovery) and VXI-11 (National Instruments Ni Max, Agilent Io controller)
• IP address support: DCHP, AUTOIP and Static IP (using Web Page)
• Connections: SOCKET @ port 5025 and TELNET @ port 5024
• Connection throughput: 25 milliseconds

200W BOP-E Series (Ethernet Control)

• True 4-quadrant programmable voltage and current ethernet control power supplies.
• 5 Standard Models:
  • 0 to ±20 Volts, 0 to ±10 Amps,
  • 0 to ±36 Volts, 0 to ±6 Amps,
  • 0 to ±50 Volts, 0 to ±4 Amps,
  • 0 to ±100 Volts, 0 to ±2 Amps,
  • 0 to ±200 Volts, 0 to ±1 Amp,
• Dual-range, 16-bit interface provides 15 bits of resolution for both full and quarter scale of output.
• Inductive and capacitive load optimized versions.
• Discovery: MDNS (Bonjour – like the printer discovery) and VXI-11 (National Instruments Ni Max, Agilent Io controller)
• IP address support: DCHP, AUTOIP and Static IP (using Web Page)
• Connections: SOCKET @ port 5025 and TELNET @ port 5024
• Connection throughput: 25 milliseconds

400W BOP-E Series (Ethernet Control)

• True 4-quadrant programmable voltage and current ethernet control power supplies.
• 5 Standard Models:
  • 0 to ±20 Volts, 0 to ±20 Amps,
  • 0 to ±36 Volts, 0 to ±12 Amps,
  • 0 to ±50 Volts, 0 to ±8 Amps,
  • 0 to ±72 Volts, 0 to ±6 Amps,
  • 0 to ±100 Volts, 0 to ±4 Amps,
• Dual-range, 16-bit interface provides 15 bits of resolution for both full and quarter scale of output.
• Inductive and capacitive load optimized versions.
• Discovery: MDNS (Bonjour – like the printer discovery) and VXI-11 (National Instruments Ni Max, Agilent Io controller)
• IP address support: DCHP, AUTOIP and Static IP (using Web Page)
• Connections: SOCKET @ port 5025 and TELNET @ port 5024
• Connection throughput: 25 milliseconds

BOP-E SERIES ANALOG METER MODELS
