The microprocessor controlled electronic loads of the EA-EL 3000 series satisfy practically every need of modern laboratories and industry.

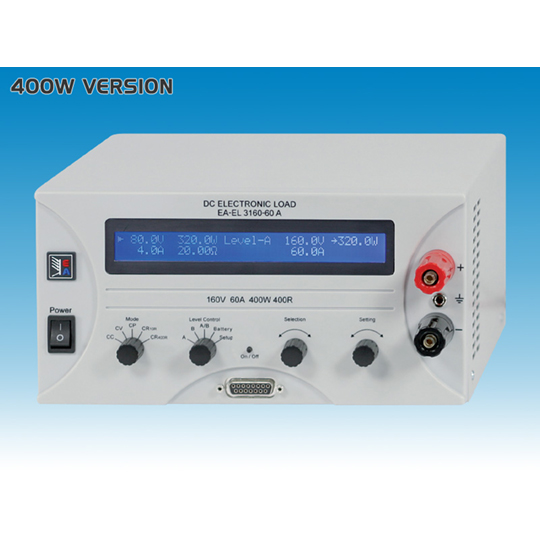

EL 3000 Series Microprocessor Controlled Electronic Loads
The microprocessor controlled electronic loads of the EA-EL 3000 series satisfy practically every need of modern laboratories and industry.
Key Features
- Power rating: 0…400 W
- Input voltages: 0…160 V or 0…400 V
- Input currents: 0…60 A or 0…25 A
- Resistances: 0…400 ? up to 0…800 ?
- Overtemperature protection (OT)
- Pulsed operation with adjustable duty cycle and variable rise/fall time
- Operation modes
- Constant current (CC)
- Constant voltage (CV)
- Constant power (CP)
- Constant resistance (CR)
- Remote sensing, trigger input, trigger output
- Battery test mode with time and capacity counter
- Optional, digital interface cards
- RS232, CAN, USB, GPIB (IEEE), Ethernet
Model Specifications
| Model | Input Voltage (V) | Input Current (A) |  Input Power (W) |
| EA-EL 3160-60 | 0-160 | 0-60 | 0-400 |
| EA-EL 3400-25 | 0-400 | 0-25 | 0-400 |
