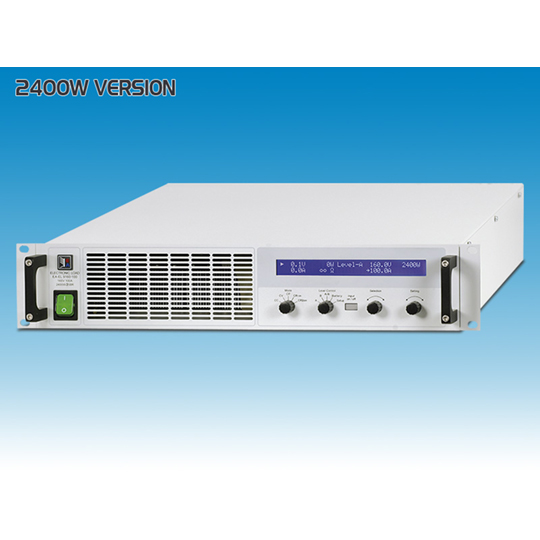

EL 9000 Series – Multi Mode Electronic Loads

EL Series include EL 9000HP. Satisfies every need of modern laboratories and industry. CV, CC, CP & CR operation modes. Output power 400W to 7.2kW.

Brand: Elektro-Automatik SKU: 428
Categories: , ,

Rent DC Power Products

To view our rental options on DC Power Products, please click here

Rent Power Analyser Products

To view our rental options on Power Analyser Products, please click here

Power Products

The loads provide the typical operation modes Constant Current (CC), Constant Power (CP), Constant Resistance (CR) and Constant Voltage (CV). The mode is preselected by a switch. Other settings are additionally effective to protect the test equipment. For example, constant current can have a maximum power setting while constant voltage, power or resistance can have a maximum current setting.

Key Features

Key Features

  • Power ratings: 0…2400 W up to 0…7200 W
  • Cabinets with higher power upon request
  • Input voltages: 0…80 V, 0…160 V, 0…400 V, 0…750 V
  • Input currents: 0…25 A up to 0…600 A
  • Resistances: 0…1.2 ? up to 0…800 ?
  • Overtemperature protection (OT)
  • Pulsed operation with adjustable duty cycle and variable rise/fall time
  • Operation modes:
    • Constant current (CC)
    • Constant voltage (CV)
    • Constant power (CP)
  • Constant resistance (CR)
  • Remote sensing, trigger input
  • Battery test mode with time and capacity counter
  • Optional, digital interface cards
    • RS232, CAN, USB, GPIB (IEEE), Ethernet
  • Optional water cooling

Model Specifications

Model Input Voltage (DC) Input Current (A) Input Power (W)
EL 9080-200 0-80 0-200 1500
EL 9080-400 0-80 0-400 3000
EL 9080-600 0-80 0-600 4500
EL 9160-100 0-160 0-100 1500
EL 9160-200 0-160 0-200 3000
EL 9160-300 0-160 0-300 4500
EL 9400-50 0-400 0-50 1500
EL 9400-100 0-400 0-100 3000
EL 9400-150 0-400 0-150 4500
EL 9750-25 0-750 0-25 1500
EL 9750-50 0-750 0-50 3000
EL 9750-75 0-750 0-75 4500
EL 9080-200 HP 0-80 0-200 2400
EL 9080-400 HP 0-80 0-400 4800
EL 9080-600 HP 0-80 0-600 7200
EL 9160-100 HP 0-160 0-100 2400
EL 9160-200 HP 0-160 0-200 4800
EL 9160-300 HP 0-160 0-300 7200
EL 9400-50 HP 0-400 0-50 2400
EL 9400-100 HP 0-400 0-100 4800
EL 9400-150 HP 0-400 0-150 7200
EL 9750-25 HP 0-750 0-25 2400
EL 9750-50 HP 0-750 0-50 4800
EL 9750-75 HP 0-750 0-75 7200

Data Sheet

For more detailed information, please download our product data sheet
