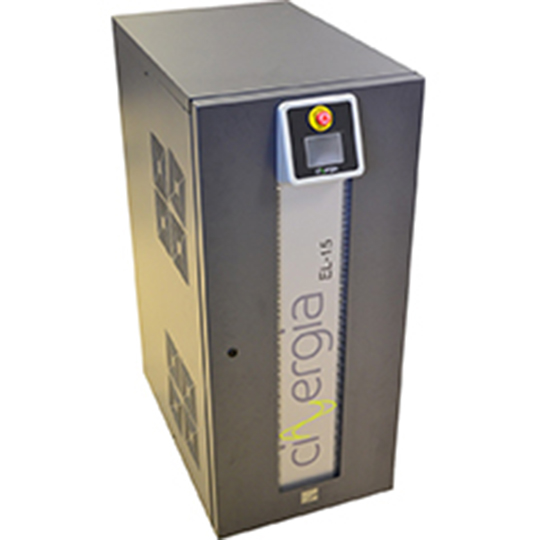

Cinergia EL-AC Loads Power Solutions

AC Electronic Loads are power electronics devices that behave as an AC electrical load. Typical applications are test platforms for smart grids, load emulation, AC sources, UPS, AC generators, Inverters, and electrical devices (as fuses or circuit breakers).

While most electronic loads are dissipative, CINERGIA offers a comprehensive range of DC, AC and AC&DC regenerative electronic loads producing significant energy savings, optimizing the electrical and cooling installation and reducing test costs.

Key Features of Cinergia AC Electronic Loads:

  • 7.5 kVA – 200 kVA
  • 4 Quadrant Power Supply
  • Regenerative up to 100% rated power
  • Full 4Q: pure capacitive and inductive current

EL-AC Loads – Independent configuration per channel:

  • Fundamental current up to 400Hz
  • Harmonics up to 780Hz
  • Phase angle

Working (EUT) voltage:

  • 0-480 Vrms, l-l (with neutral)
  • 0-277 Vrms, l-n
  • 10-400Hz
Model Power Rated Current ACrms Dimensions

DxWxH (mm)
EL7.5-AC 7.5 kVA 3 Channels: 10A/Phase

1 Channel: 30A

770x450x1100
EL10-AC 10 kVA 3 Channels: 15A/Phase

1 Channel: 45A

770x450x1100
EL15-AC 15 kVA 3 Channels: 20A/Phase

1 Channel: 60A

770x450x1100
EL20-AC 20 kVA 3 Channels: 25A/Phase

1 Channel: 75A

770x450x1100
EL30-AC 30 kVA 3 Channels: 40A/Phase

1 Channel: 120A

770x450x1100
EL40-AC 40 kVA 3 Channels: 50A/Phase

1 Channel: 150A

770x450x1100
EL50-AC 50 kVA 3 Channels: 65A/Phase

1 Channel: 195A

770x450x1100
EL60-AC 60 kVA 3 Channels: 80A/Phase

1 Channel: 240A

770x450x1100
EL80-AC 80 kVA 3 Channels:105A/Phase

1 Channel: 315A

880x590x1320
EL100-AC 100 kVA 3 Channels: 130A/Phase

1 Channel: 390A

880x590x1320
EL120-AC 120 kVA 3 Channels: 155A/Phase

1 Channel: 465A

880x590x1320
EL160-AC 160 kVA 3 Channels: 185A/Phase

1 Channel: 555A

850x900x2000
EL200-AC 200 kVA 3 Channels: 230A/Phase

1 Channel: 690A

850x900x2000
