EL-DC Electronic Loads are devices that behave as a load and are designed to test electric and electronic DC sources. While most electronic loads are dissipative, CINERGIA offers a comprehensive range of DC, AC and AC&DC regenerative electronic loads producing significant energy savings, optimizing the electrical and cooling installation and reducing test costs.

Key Features:

  • 6.75 – 160 kW
  • 2/4 Quadrant Power Supply
  • Regenerative up to 100% rated power

1 channel Output:

  • 0 to 750V, 0 to ± 690A

3 channels Output:

  • 0 to 750V, 0 to ±230A/ch

Bipolar Output

  • -750 to +750V, 0 to ±230A
  • CC, CP, CR, CV modes
  • AC&DC version available
Model Rated Rated Current Dimensions: DxWxH
EL7.5-DC 7.5kVA /

6.75kW

3 Channels (0-750V): ±10A

1 Channel (0-750V): ±30A

Bipolar (-750 to 750V): ±10A

700x450x1100
EL10-DC 10kVA /

9kW

3 Channels (0-750V): ±15A

1 Channel (0-750V): ±45A

Bipolar (-750 to 750V): ±15A

700x450x1100

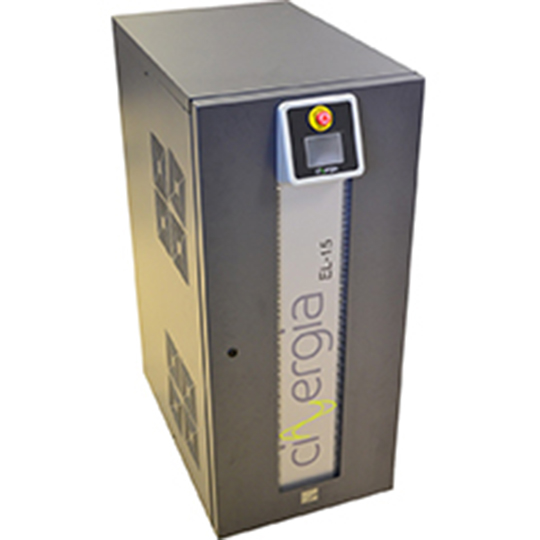

EL15-DC 15kVA /

13,5kW

3 Channels (0-750V): ±20A

1 Channel (0-750V): ±60A

Bipolar (-750 to 750V): ±20A

700x450x1100
EL20-DC 20kVA /

18kW

3 Channels (0-750V): ±25A

1 Channel (0-750V): ±75A

Bipolar (-750 to 750V): ±25A

700x450x1100
EL30-DC 30kVA /

27kW

3 Channels (0-750V): ±40A

1 Channel (0-750V): ±120A

Bipolar (-750 to 750V): ±40A

700x450x1100
EL40-DC 40kVA /
36kW
3 Channels (0-750V): ±50A
1 Channel (0-750V): ±150A
Bipolar (-750 to 750V): ±50A
700 x450x1100
EL50-DC 50kVA /
45kW
3 Channels (0-750V): ±65A
1 Channel (0-750V): ±195A
Bipolar (-750 to 750V): ±65A
700x450x1100
EL60-DC 60kVA /
54kW
3 Channels (0-750V): ±80A
1 Channel (0-750V): ±240A
Bipolar (-750 to 750V): ±80A
880x590x1320
EL80-DC 80kVA /
72kW
3 Channels (0-750V): ±105A
1 Channel (0-750V): ±315A
Bipolar (-750 to 750V): ±105A
880x590x1320
EL100-DC 100kVA /
90kW
3 Channels (0-750V): ±130A
1 Channel (0-750V): ±390A
Bipolar (-750 to 750V): ±130A
880x590x1320
EL120-DC 120kVA /
108kW
3 Channels (0-750V): ±130A
1 Channel (0-750V): ±390A
Bipolar (-750 to 750V): ±130A
880x590x1320
EL160-DC 160kVA /
128kW
3 Channels (0-750V): ±155A
1 Channel (0-750V): ±465A
Bipolar (-750 to 750V): ±155A
850x900x2000
EL200-DC 200kVA /
160kW
3 Channels (0-750V): ±185A
1 Channel (0-750V): ±555A
Bipolar (-750 to 750V): ±185A
850x900x2000
