EL-Electronic Loads

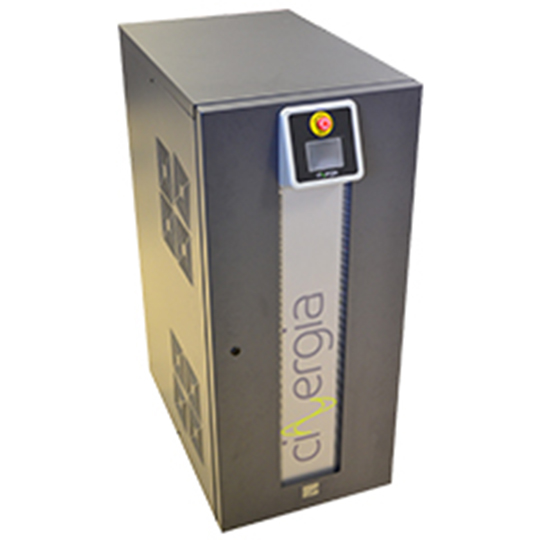

EL-AC&DC is the integration of two equipment in one: an EL-AC and an EL-DC in a single cabinet. The equipment can be used in AC or in DC test and lab platforms providing a high flexibility at a very competitive price, taking advantage of the shared hardware.

Brand: Cinergia SKU: 440
Categories: , , , , , , , ,

Cinergia EL-Electronic Loads

The CINERGIA EL-AC&DC is the integration of two devices into one: an EL-AC and an EL-DC in a single cabinet. The equipment can be used in AC or in DC test and lab platforms providing a high flexibility at a very competitive price, taking advantage of the shared hardware.

Key Features

Cinergia EL Key Features

7.5 –200kVA / 6.75-160kW

  • 4 Quadrant Power Supply
  • Regenerative up to 100% rated power

AC OUTPUT:

1 channel Output:

  • 30-690Arms

3 channels Output:

  • 10-230Arms per channel

DC OUTPUT:

1 channel Output:

  • 0 to 750V, 0 to ±690A

3 channels Output:

  • 0 to 750V, 0 to ±230A/ch

Bipolar Output:

  • -750 to +750V, 0 to ±230A
Model Rated
 Rated Current ACrms Rated Current DC Dimensions
DxWxH (mm)
EL7.5-AC&DC 7.5kVA /

6.75kW

 3 chanels: 10A/chanel

1 chanel: 30A (Parallel)

 3 chanels: ±10A/chanel

1 chanel: ±30A (Parallel)

 770x450x1100
EL10-AC&DC 10kVA /

9kW

 3 chanels: 15A/chanel

1 chanel: 45A (Parallel)

 3 chanels: ±15A/chanel

1 chanel: ±45A (Parallel)

 770x450x1100
EL15-AC&DC 15kVA /

13.5kW

 3 chanels: 20A/chanel

1 chanel: 60A (Parallel)

 3 chanels: ±20A/chanel

1 chanel: ±60A (Parallel)

 770x450x1100
EL20-AC&DC 20kVA /

18kW

 3 chanels: 25A/chanel

1 chanel: 75A (Parallel)

 3 chanels: ±25A/chanel

1 chanel: ±75A (Parallel)

 770x450x1100
EL30-AC&DC 30kVA /

27kW

 3 chanels: 40A/chanel

1 chanel: 120A (Parallel)

 3 chanels: ±40A/chanel

1 chanel: ±120A (Parallel)

 770x450x1100
EL40-AC&DC 40kVA /

36kW

 3 chanels: 50A/chanel

1 chanel: 150A (Parallel)

 3 chanels: ±50A/chanel

1 chanel: ±150A (Parallel)

 770x450x1100
EL50-AC&DC 50kVA /

45kW

 3 chanels: 65A/chanel

1 chanel: 195A (Parallel)

 3 chanels: ±65A/chanel

1 chanel: ±195A (Parallel)

 770x450x1100
EL60-AC&DC 60kVA /

54kW

 3 chanels: 80A/chanel

1 chanel: 240A (Parallel)

 3 chanels: ±80A/chanel

1 chanel: ±240A (Parallel)

 590x1320x880
EL80-AC&DC 80kVA /

72kW

 3 chanels: 105A/chanel

1 chanel: 315A (Parallel)

 3 chanels: ±105A/chanel

1 chanel: ±315A (Parallel)

 880x590x1320x
EL100-AC&DC 100kVA /

90kW

 3 chanels: 130A/chanel

1 chanel: 390A (Parallel)

 3 chanels: ±130A/chanel

1 chanel: ±390A (Parallel)

 880x590x1320
EL120-AC&DC 120kVA /

108kW

 3 chanels: 155A/chanel

1 chanel: 465A (Parallel)

 3 chanels: ±130A/chanel

1 chanel: ±390A (Parallel)

 880x590x1320
EL160-AC&DC 160kVA /

128kW

 3 chanels: 185A/chanel

1 chanel: 555A (Parallel)

 3 chanels: ±155A/chanel

1 chanel: ±465A (Parallel)

 850x900x2000
EL200-AC&DC 200kVA /

160kW

Model Specifications

Cinergia EL-Electronic Loads

The CINERGIA EL-AC&DC is the integration of two devices into one: an EL-AC and an EL-DC in a single cabinet. The equipment can be used in AC or in DC test and lab platforms providing a high flexibility at a very competitive price, taking advantage of the shared hardware.

Cinergia EL Key Features

7.5 –200kVA / 6.75-160kW

  • 4 Quadrant Power Supply
  • Regenerative up to 100% rated power

AC OUTPUT:

1 channel Output:

  • 30-690Arms

3 channels Output:

  • 10-230Arms per channel

DC OUTPUT:

1 channel Output:

  • 0 to 750V, 0 to ±690A

3 channels Output:

  • 0 to 750V, 0 to ±230A/ch

Bipolar Output:

  • -750 to +750V, 0 to ±230A
Model Rated
 Rated Current ACrms Rated Current DC Dimensions
DxWxH (mm)
EL7.5-AC&DC 7.5kVA /

6.75kW

 3 chanels: 10A/chanel

1 chanel: 30A (Parallel)

 3 chanels: ±10A/chanel

1 chanel: ±30A (Parallel)

 770x450x1100
EL10-AC&DC 10kVA /

9kW

 3 chanels: 15A/chanel

1 chanel: 45A (Parallel)

 3 chanels: ±15A/chanel

1 chanel: ±45A (Parallel)

 770x450x1100
EL15-AC&DC 15kVA /

13.5kW

 3 chanels: 20A/chanel

1 chanel: 60A (Parallel)

 3 chanels: ±20A/chanel

1 chanel: ±60A (Parallel)

 770x450x1100
EL20-AC&DC 20kVA /

18kW

 3 chanels: 25A/chanel

1 chanel: 75A (Parallel)

 3 chanels: ±25A/chanel

1 chanel: ±75A (Parallel)

 770x450x1100
EL30-AC&DC 30kVA /

27kW

 3 chanels: 40A/chanel

1 chanel: 120A (Parallel)

 3 chanels: ±40A/chanel

1 chanel: ±120A (Parallel)

 770x450x1100
EL40-AC&DC 40kVA /

36kW

 3 chanels: 50A/chanel

1 chanel: 150A (Parallel)

 3 chanels: ±50A/chanel

1 chanel: ±150A (Parallel)

 770x450x1100
EL50-AC&DC 50kVA /

45kW

 3 chanels: 65A/chanel

1 chanel: 195A (Parallel)

 3 chanels: ±65A/chanel

1 chanel: ±195A (Parallel)

 770x450x1100
EL60-AC&DC 60kVA /

54kW

 3 chanels: 80A/chanel

1 chanel: 240A (Parallel)

 3 chanels: ±80A/chanel

1 chanel: ±240A (Parallel)

 590x1320x880
EL80-AC&DC 80kVA /

72kW

 3 chanels: 105A/chanel

1 chanel: 315A (Parallel)

 3 chanels: ±105A/chanel

1 chanel: ±315A (Parallel)

 880x590x1320x
EL100-AC&DC 100kVA /

90kW

 3 chanels: 130A/chanel

1 chanel: 390A (Parallel)

 3 chanels: ±130A/chanel

1 chanel: ±390A (Parallel)

 880x590x1320
EL120-AC&DC 120kVA /

108kW

 3 chanels: 155A/chanel

1 chanel: 465A (Parallel)

 3 chanels: ±130A/chanel

1 chanel: ±390A (Parallel)

 880x590x1320
EL160-AC&DC 160kVA /

128kW

 3 chanels: 185A/chanel

1 chanel: 555A (Parallel)

 3 chanels: ±155A/chanel

1 chanel: ±465A (Parallel)

 850x900x2000
EL200-AC&DC 200kVA /

160kW

 3 chanesl: 230A/chanel

1 chanel: 690A (Parallel)

 3 chanels: ±185A/chanel

1 chanel: ±555A (Parallel)

 850x900x2000

Data Sheet

Coming Soon
