High-Precision Current and Voltage control for the most demanding applications – ALL IN ONE!
The FAST-PS units can be used both as a current or voltage generator, giving precision and flexibility for different applications.
Current and voltage threshold limits can be set in C.V. and in C.C. mode respectively, and they make the power supply unit working as a C.C. source when the threshold is exceeded in C.V. mode and vice versa.
Modules rated from 100 W up to 600 W can be configured with extra features if needed, as for the Analog Control Input (on a BNC) that allows using the power unit as an amplifier and a Trigger Input.
An even higher stability option is available for very demanding and specific applications: the unit is equipped internally with a precision current transducer of the 0-FLUCS DCCT series.

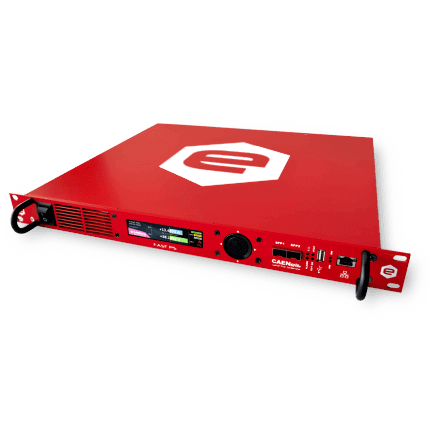

The FAST-PS series is the new generation of bipolar power supplies by CAEN ELS and it was designed in order to have state-of-the-art performances both in current- and voltage-control modes.
The FAST-PS series is the new generation of bipolar power supplies by CAEN ELS and it was designed in order to have state-of-the-art performances both in current- and voltage-control modes.
The 10/100/1000 Ethernet connection and the two SFP slots (which can be used as electrical or optical communication channels) allow to control the power converter in two different modes: the “slow” interface over the Ethernet (up to 1 kHz) is intended in cases where the power supply has to be controlled at lower rates and/or to set and monitor general parameters of the unit. The “fast” interface over the SFP allows to run feedback loops and fast corrections by reaching a maximum update rate of 10 kHz.
The control loop, as for most of CAEN ELS power supplies, is digital in order to obtain the maximum flexibility and easiness of configuration to any connected load.
Compatibility and integration with CAEN ELS software tools is also guaranteed for these power units: both the VISUAL PS and the CAEN ELS Device Manager software applications can be used to quickly configure, monitor, upgrade all the connected FAST-PS on the network!
