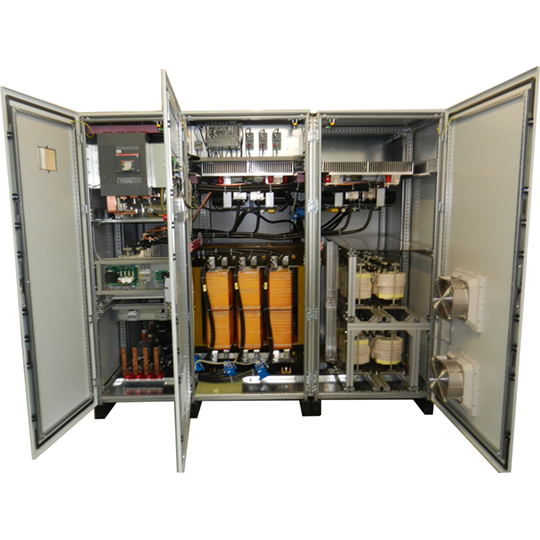

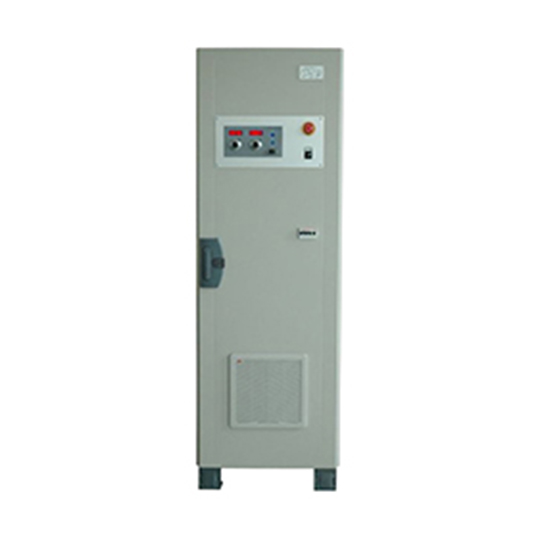

FVC Series Three Phase Frequency Converter

The FVC Series, is a three-phase frequency and voltage converters for manual and automatic test benches and measurement labs.

Brand: Zenone Elettronica SKU: 43
Categories: , , , ,

Rent AC Power Products

To view our rental options on AC Power Products, please click here

3-Phase Frequency Converter

Three-Phase frequency labs and voltage converters for manual and automatic test benches and measurement labs.

700V-STANDARD MODEL:

Model Power Input 1
Vmax / Amax
 Input 2
Vmax / Amax
FVCT700V-3kVA-2 3kVA 350V / 5A 700V / 2.5A
FVCT700V-5kVA-2 5kVA 350V / 8.3A 700V / 4.1A
FVCT700V-7,5kVA-2 7,5kVA 350V / 12A 700V / 6.2A
FVCT700V-10kVA-2 10kVA 350V / 17A 700V / 8.3A
FVCT700V-15kVA-2 15kVA 350V / 25A 700V / 12A
FVCT700V-20kVA-2 20kVA 350V / 33A 700V / 17A
FVCT700V-30kVA-2 30kVA 350V / 50A 700V / 25A
FVCT700V-40kVA-2 40kVA 350V / 66A 700V / 33A
FVCT700V-60kVA-2 60kVA 350V / 99A 700V / 50A
FVCT700V-80kVA-2 80kVA 350V / 132A 700V / 66A
FVCT700V-100kVA-2 100kVA 350V / 165A 700V / 83A
FVCT700V-120kVA-2 120kVA 350V / 198A 700V / 99A
FVCT700V-150kVA-2 150kVA 350V / 248A 700V / 124A
FVCT700V-250kVA-2 250kVA 350V / 413A 700V / 206A

View our AC Power Supply Rental Options

Key Features

FVC Series Three Phase Converter Key Features

  • 1 and 3 Phase Output
  • Output Power: 5kVA – 1.000kVA
  • Output Voltage: up to 1000V L-L
  • Output Frequency: 40Hz – 200Hz
  • Other Versions:
    • 15Hz – 80Hz
    • 200Hz – 350Hz
    • 350Hz – 450Hz
  • Overload Capability up to 200%
  • Low output distortion.
  • Custom Speci
  • RS232/RS485 interface standard,
  • B/LAN/Fiber Optic Optional
  • Windows® Software FVC Manager

Main Applications

  • 50/60/400Hz conversions
  • Transformer Tests
  • tests of motors and pumps
500V-STANDARD MODEL:

Model Specifications

Model Power Input 1
Vmax / Amax
 Input 2
Vmax / Amax
FVCT500V-3kVA-2 3kVA 250V / 6.9A 500V / 3.5A
FVCT500V-5kVA-2 5kVA 250V / 12A 500V / 5.8A
FVCT500V-7,5kVA-2 7,5kVA 250V / 17A 500V / 8.7A
FVCT500V-10kVA-2 10kVA 250V / 23A 500V / 12A
FVCT500V-15kVA-2 15kVA 250V / 35A 500V / 17A
FVCT500V-20kVA-2 20kVA 250V / 46A 500V / 23A
FVCT500V-30kVA-2 30kVA 250V / 69A 500V / 35A
FVCT500V-40kVA-2 40kVA 250V / 92A 500V / 46A
FVCT500V-50kVA-2 60kVA 250V / 139A 500V / 69A
FVCT500V-60kVA-2 80kVA 250V / 185A 500V / 92A
FVCT500V-100kVA-2 100kVA 250V / 231A 500V / 116A
FVCT500V-120kVA-2 120kVA 250V / 277A 500V / 139A
FVCT500V-150kVA-2 150kVA 250V / 347A 500V / 173A
FVCT500V-250kVA-2 250kVA 250V / 578A 500V / 289A

Data Sheet

For more detailed information, please download our product data sheet
