Key Features

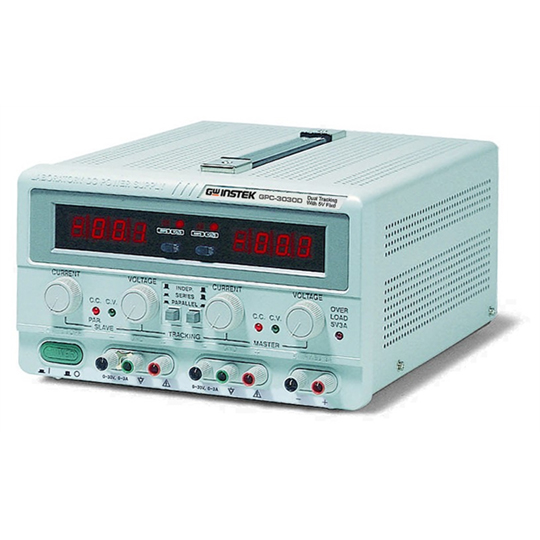

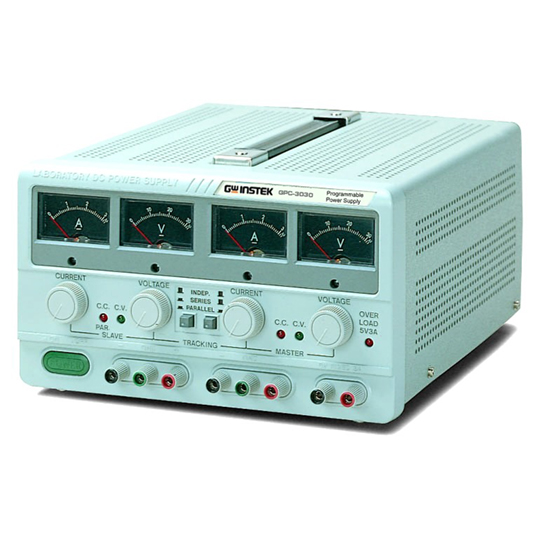

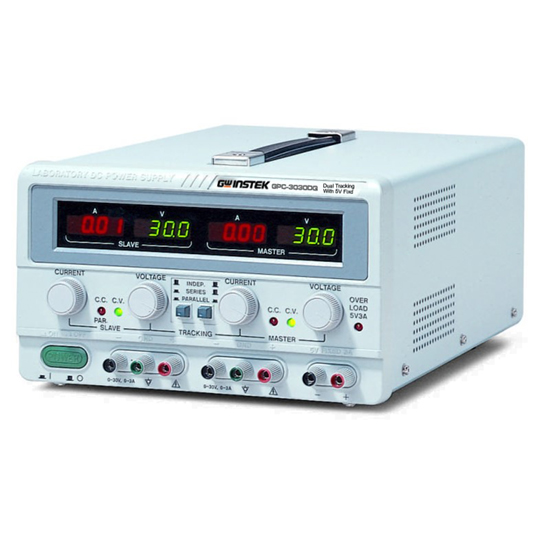

GPC Series Triple Output Linear DC Power Supply
GW Instek‘s GPC Series DC are triple output, 195 to 375W, linear DC power supplies. Channel 1 and 2 are fully adjustable (model dependant) and Channel 3 is fixed at 5V/3A with ripple and noise at less than 2mVrms. Overload and reverse polarity protection keep the GPC Series DC power supply and its loads safe from unexpected conditions.
The GPC-3030DQ contains a temperature controlled cooling fan for thermal protection. It features continuous or dynamic internal load selection and serial or parallel tracking for application flexibility.
GW Instek’s GPC Series is an ideal solution for inexpensive bench-top applications requiring low noise and multiple outputs.
Key Features of GW Instek GPC Series Linear DC Power Supplies
- Four Digital Panel Meters (GPC-3030DQ)
- Triple Output
- Auto Tracking
- Auto and Parallel Operation
- Constant Voltage and Constant Current Operation
- Low Ripple and Noise
- Internal Select for Continuous or Dynamic Load
- Overload and Reverse Polarity Protection
- 3 1/2 Digits 0.39″ LED Display(GPC-3030DQ)
- 3 1/2 Digits 0.5″ LED Display(GPC-1850D/3030D/3060D/6030D)
- 5V, 3A Fixed Output
