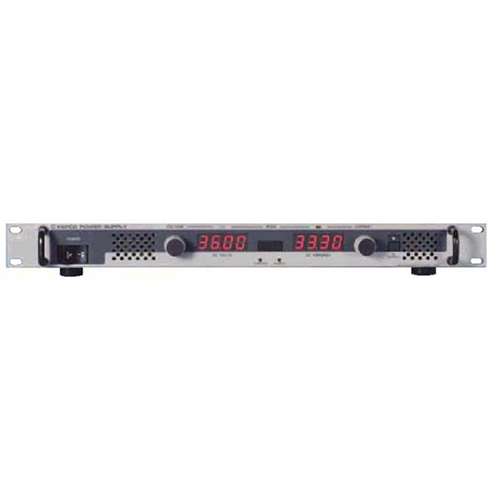

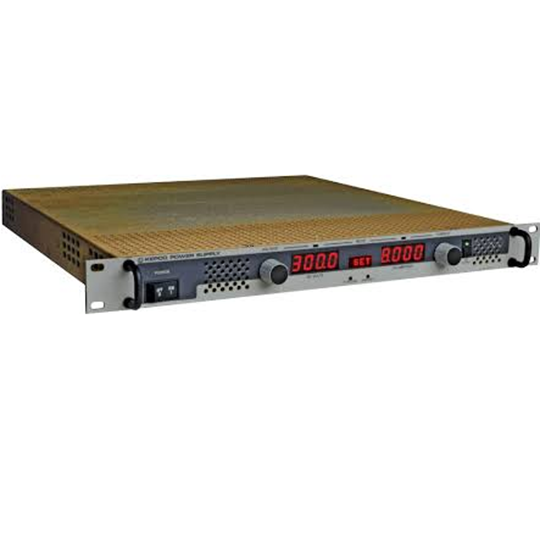

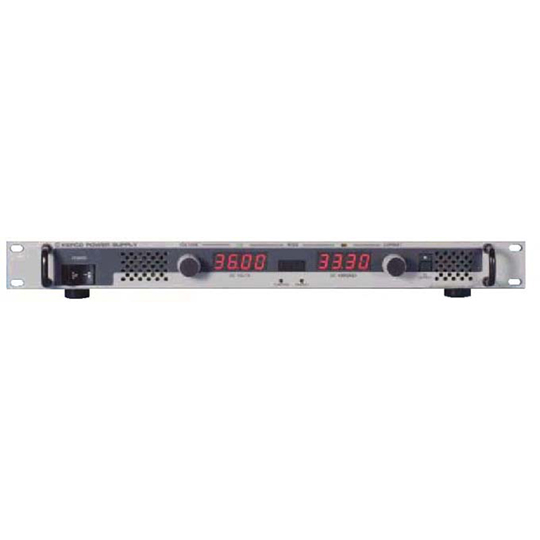

KLP Series Laboratory Power Supply

Key Features

KLP Series Laboratory Power Supplies

The KLP is an entirely new laboratory power supply in which the voltage/current limits are automatically recalculated, forming a constant-power hyperbolic-shaped boundary between the voltage and current modes. This curve, which replaces the single max-power operating point of conventional power supplies, provides the user with a greatly expanded choice of maximum power volt-ampere combinations as illustrated in the diagram by points A to B to C. The constant-power limit of the KLP is 1200 watts.

The standard KLP Models (no suffix, previously referred to as -1200 models) have built-in GPIB and RS 232 interfaces. The E-Series models (suffix E, previously referred to as -1.2K Models) have built-in GPIB and LAN interfaces. The LAN interface is an LXI-approved ethernet-based interface that allows multiple-user access via a standard web browser. Both standard and E-Series KLP models employ Kepco’s Hyperbolic Power™ technology for full 1200 watt power over the operating range.

The Rapid Output Discharge Circuit (RODC) option (suffix R) is available on all KLP models. This circuit rapidly discharges the output capacitance, thus significantly reducing response time to reductions in output voltage.

The KLP saves money and space by reducing the number of power supplies required. For example: the single model KLP 75-33 operates as a 0-75V/16A power supply or a 0-36V/33A power supply and all 1200W volt-ampere combinations in between. Four recent models provide voltage as high as 600V (KLP 600-4 and KLP 600-4E) and current as high as 150A (KLP 10-150 and KLP 10-150E).

Kepco makes a variety of accessory prefabricated line cord sets for connecting KLP to source power via conventional box-mounted receptacles; a user-wireable mating plug (P/N 142-0381) is supplied with the unit to allow the user to fabricate a custom line cord for applications involving custom source power wiring. The table below lists three popular cord set variants for North American applications available as accessories. For other options please contact Caltest Instruments with specific requirements.

KLP Series Key Features

• Switch mode topology for cool, efficient operation
• GPIB and isolated analogue programming included on all models
• Built-in RS232 at no extra cost (standard Models only)
• LAN (LXI) control optional (E-Series Models only), replaces standard RS 232 interface
• 1U panel height at 1200 watts
• Front to back air flow allows full power operation without space between supplies (zero clearance)
• Seven models: All models include GPIB interface. Standard models (no Suffix) include RS 232 interface, E-Series (E suffix) include LAN (LXI) interface:
• KLP 10-150, KLP 20-120, KLP 36-60, KLP 75-33, KLP 150-16, KLP 300-8, KLP 600-4
• Wide-range a-c input, 90-265V a-c with PFC
