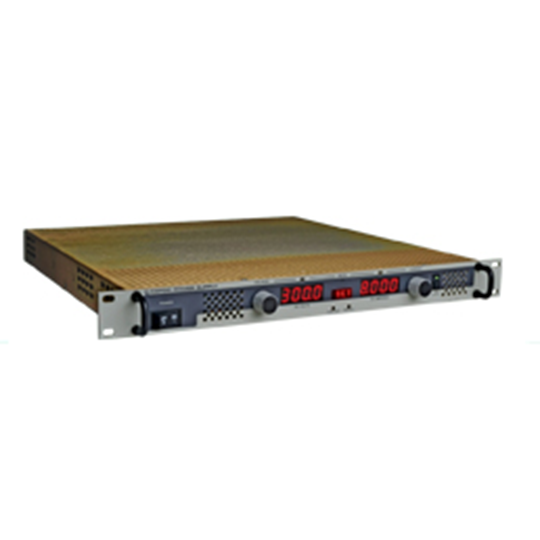

The KLR Power Supply Series are automatic crossover, 1U high, 2400-watt voltage/current stabilizers with a full rectangular output characteristic within the voltage and current ranges listed in the Models Table.
For each model a multitude of limit models can be configured. Limit models allow the unit to be configured to maximum settings below the rated voltage and/or rated current. When a limit model is established the unit will not accept programming values above the user-defined limits.
The standard KLR Models (no suffix) have built-in GPIB and RS 232 interfaces. The E-Series models (suffix E) have built-in GPIB and LAN interfaces. The LAN interface is an ethernet-based interface that allows multiple-user access via a standard web browser.
The Rapid Output Discharge Circuit (RODC) option (suffix R) is available on all KLR models. This circuit rapidly discharges the output capacitance, thus significantly reducing response time to reductions in output voltage.
Kepco makes a variety of accessory prefabricated line cord sets for connecting KLR to source power via conventional box-mounted receptacles; a user-wireable mating plug is also available for applications involving custom source power wiring. The table below lists two popular cord set variants for North American applications. For other options please contact Kepco Sales Engineering with specific requirements.
