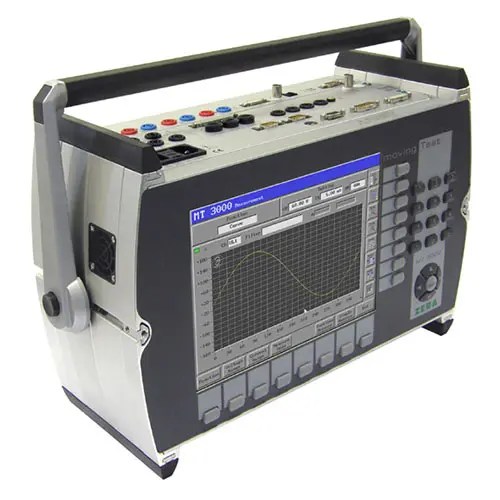

MT3000 Portable Reference Meter

MT3000

Portable Reference Meter
Phases: 3
Accuracy classes: 0.02 / 0.05

Phases	3
Accuracy class	0.02 0.05
Current measurement max.	12 A (direct measurement) 120 A (direct measurement) 30000 A (via special current clamps)
Voltage measurement max.	300 V 600 V
Display	10.4″ Coloured
Main functions	Actual values, vectorial and curve display Error measurement Measurement of harmonics up to the 40th
Scope of application	On-site measurement with system load
Specials	Accuracy class depends on the integrated measuring module Automatic measurement (optional – only in combination with a ZERA source) Burden measurement for CT/VT Current measurement (direct) depends on the integrated measuring module Energy dosage (optional) I transformer testing (optional)
