2000 Series Programmable DC Electronic Loads
The PEL-2004 and PEL-2002 are multiple channel, programmable DC electronic loads with a modularized structure. The PEL-2000 Series is designed to meet the continuing shift toward high speed operation in today’s semiconductor market. As the power supply units, DC-DC converters, and batteries that drive semiconductor circuits to follow this shift, power supply design, quality inspection, and characteristic certification using high-speed performance loads have become necessary.
PEL 2000 Series Key Features:
- Sequence function to do high Efficient load simulations
- Flexible configuration with mainframes and plug-in modules
- Multiple independent load inputs up to 8 channels in a mainframe
- Parallel connection of inputs for increased load capacity
- Parallel connection of inputs for static and dynamic tests
- Multiple channels run for dynamic tests under one clock control
- Maximum rated power for low range high resolution CC tests
- Von setting and Von on/off for start-up Von tests
- Program mode to create work routines for repetitive tests
- OPP/OCP/OVP/OTP protections
- External channel control/monitoring via an analogue control connector
- Multi-Interface USB Device / Host, RS-232C, and GPIB (Optional)
- Multi-mainframe link up to 5 mainframes in a system

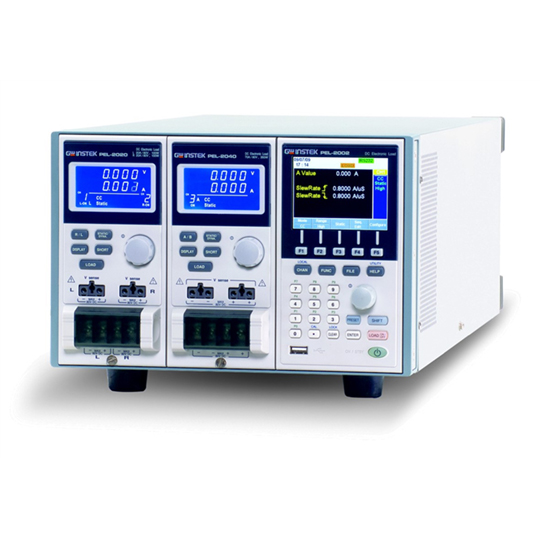

- PEL-2002 2-Slot Programmable DC Electronic Load Mainframe

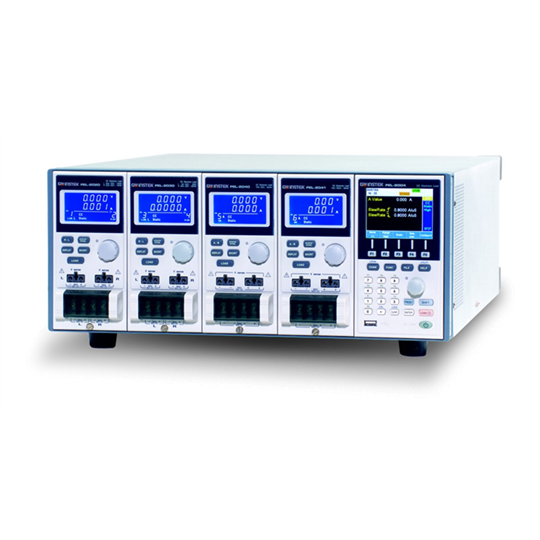

- PEL-2004 4-Slot Programmable DC Electronic Load Mainframe
- PEL-2020 Dual Channel Module, (1~80V, 20A, 100W) x 2
- PEL-2030 Dual Channel Module, (1~80V, 5A, 30W) x 1 + (1~80V, 40A, 250W) x 1
- PEL-2040 Single Channel Module, (1~80V, 70A, 350W)
- PEL-2041 Single Channel Module, (2.5~500V, 10A, 350W)
