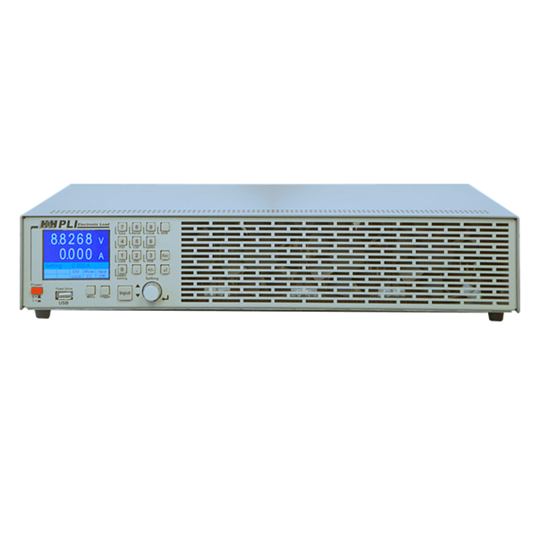

PLI Series – Electronic Loads

Key Features

Key Features

• Voltage up to 800 V
• Current up to 300 A
• Power 600 W … 3,200 W
• Temporary overload capacity, depending on model
• High power density up to 2,100 W in 2HU (3,200W in 3HE)
• Ethernet + USB + RS-232 + CAN as standard (GPIB optional)
• Intuitive operation
• Quick operation by shortcuts
• Current, voltage, resistance and power mode
• MPPT Function
• Protections for current and voltage
• Dynamic loads
• SCPI programming with measurement function
• USB stick as measurement data memory
• Full electronic protection
• Analog measurement outputs for voltage and current
• Analog control input
• Digital input and programmable control output
• Silent fan cooling
• Description:

The PLI series of electronic loads can be operated comfortably with a graphical user interface.
The highlight of the PLI series is the extensive variety of standard interfaces.
Apart from Ethernet, USB, RS-232 and Analog interface there is a standard CAN interface.
Programming is done in SCPI syntax.

Function

The units provide constant current mode, constant voltage mode and constant resistance mode.
In addition protections for current and voltage can be set in any mode.
Dynamic operation can be configured by up to 300 list point settings.
A data acquisition function allows to store measurement data on an external USB flash drive.

Data Interfaces

The following interfaces are included as standard:

• Ethernet
• USB
• RS-232
• CAN
• Analog
