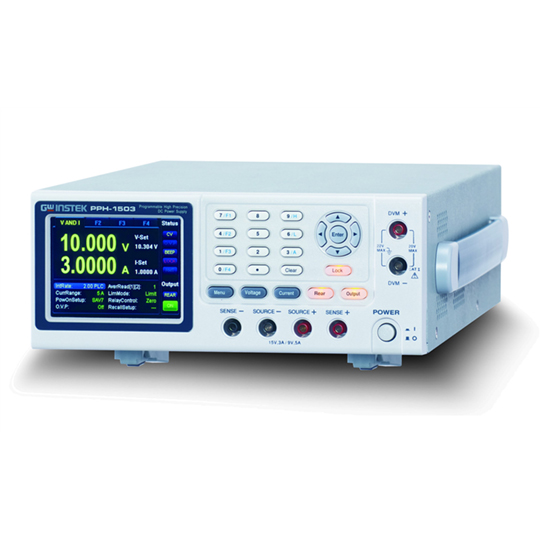

PPH 1503 is a high-speed and high-precision DC Power Supply with Dual Range of 15V/3A or 9V/5A. PPH 1503 is exclusively designed to meet low power consumption requirements and users’ great demands of accuracy, speed and resolution of both voltage and current. Circuits are designed with swift response capability to provide a stable voltage output while experiencing load changes.
r Products
PPH 1503 is a high-speed and high-precision DC Power Supply with Dual Range of 15V/3A or 9V/5A. PPH 1503 is exclusively designed to meet low power consumption requirements and users’ great demands of accuracy, speed and resolution of both voltage and current. Circuits are designed with swift response capability to provide a stable voltage output while experiencing load changes.
Key Features
- Dual Range Output (0~15V/0~3A) or (0~9V/0~5A)

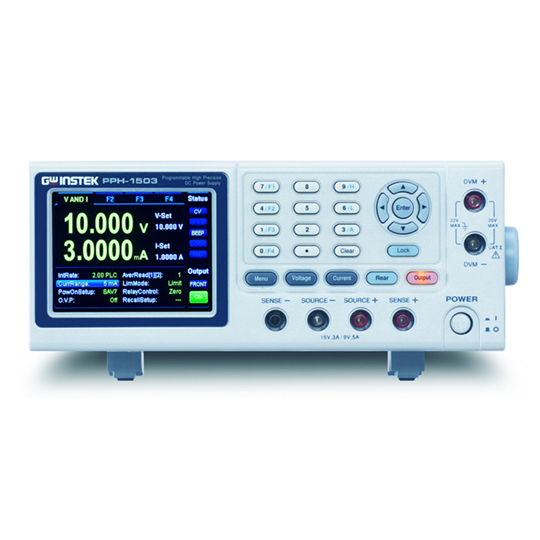

- 3.5 Inch TFT LCD Display
- Constant Voltage and Constant Current Operation
- Built-in DVM Measurement Function
- High Measurement REsolution (1mV/0.1mA for 5A Range);(1mV/0.1uA for
5mA Range) - External Relay Control Output On/Off
- Sink Current Capability (Maximum:2A)
- Digital Panel Control

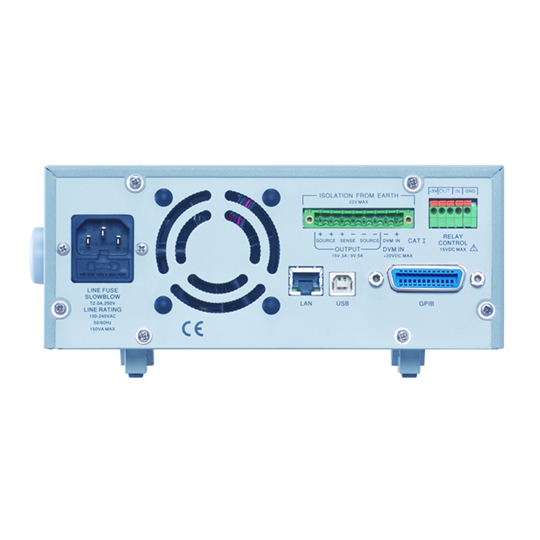

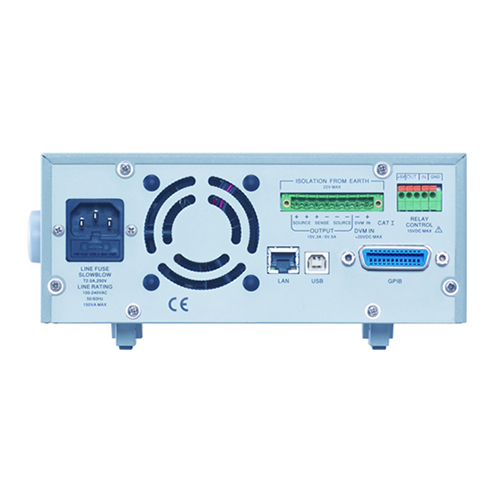

- Selectable Output and Input (DVM) Ports From Front or Rear Panel
- Key Lock Function
- 5 Sets of Preset Memory Including Power Output ON/OFF States
- High Speed Transient Recovery Time(<40us within 100mV ; <80us within
20mV) - OVP/OCP/OTP Protection to Prevent DUT Damage
- Standard Multiple Interfaces: USB / LAN /GPIB
- Labview Driver and PC Remote Control Software
