DC Power Supplies, EA-PS 1000 Series
The EA-PS 1000 series is a range of adjustable, heavy-duty, switched-mode DC power supplies offering standard output volt- ages of up to 900V, output currents of up to 6000A and output power ratings of up to 120kW (output voltage/current/power of up to 1000V/40000A/800kW upon request) This series is used in high-power environments such as electroplating (e.g. surface treatment, water purification), multiple industrial applications such as powering of electric engine starters, DC motors etc. and is used in automatic end-of-line test systems for the testing of contactors, relays, switches, breakers and heavy duty DC components in general.
All units can be remotely controlled and read back via 0…10V, e.g. via a PLC. Depending on the model, they are equipped with 10-turn potentiometers for voltage and current adjustment and volt- and ampere meters. Furthermore, all models can be controlled via the optional, external and comfortable user panel EA-PS 280.
All units are protected against overload and short-circuit and can be equipped with remote sensing and computer interface (RS232/RS485) as an option. An Ethernet interface (LAN) is available upon request as well. All units have a 3x 400V, 50-60Hz mains input.

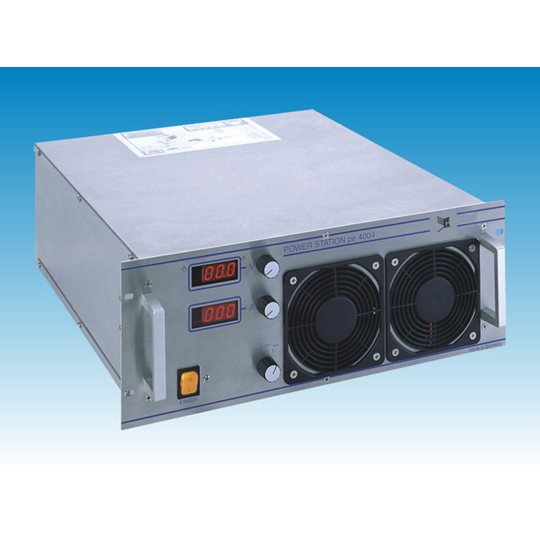

DC Power Supplies EA-PS 1000 5000W – 120000W

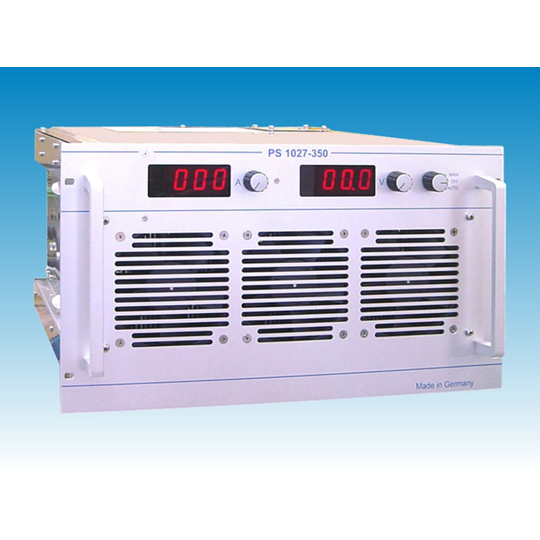

DC Power Supplies PS 1000-15KW 14000W – 18000W
Key Features
- High efficiency >85%
- Output power ratings: 14kW up to 18kW
- Output voltages: 0…20V up to 0…900V
- Output currents: 0…20A up to 0…750A
- Constant voltage and current regulation
- 3-digit LED display for voltage and current
- U / I programmable via 0…10V
- U / I monitoring via 0…10V
- Remote ?on/off“ for DC output
- Operation temp range 0-35°C (40°C on req.)
- Mains input 3 x 400V +/-10% 50-60Hz, P.F. >0,95
- Inrush current limit
- Air cooling by fan, air volume req. max. 540m3/h
- Stainless steel housing, for 19“ rack systems
- DC output connection via copper bars
- Options
- Programming via PC (RS485/RS232/LAN)
- Insulated analog amplifiers
- Remote sensing
- Regulation deviation <1%
- Ripple (300 Hz) <1%
| Model | Voltage (V) | Current (A) |  Power (W) |
| EA-PS 1020-750 | 0-20 | 0-750 | 0-15000 |
| EA-PS 1040-350 | 0-40 | 0-350 | 0-14000 |
| EA-PS 1060-250 | 0-60 | 0-250 | 0-15000 |
| EA-PS 1080-200 | 0-80 | 0-200 | 0-16000 |
| EA-PS 1150-150 | 0-150 | 0-150 | 0-15000 |
| EA-PS 1300-50 | 0-300 | 0-50 | 0-15000 |
| EA-PS 1600-25 | 0-600 | 0-25 | 0-15000 |
| EA-PS 1900-20 | 0-900 | 0-20 | 0-18000 |

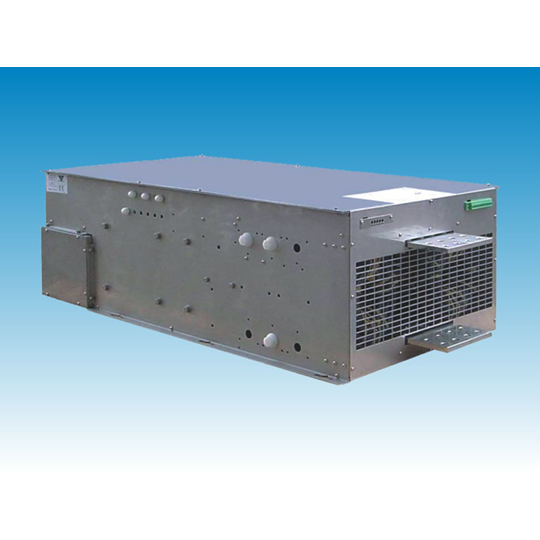

DC Power Supplies PS 1000-40KW 30000W – 40000W
Key Features
- High efficiency >85%
- Output power ratings: 30kW up to 45kW
- Output voltages: 0…20V up to 0…900V
- Output currents: 0…50A up to 0…2000A
- Constant voltage and current regulation
- 3-digit LED display for voltage and current
- U / I programmable via 0…10V
- U / I monitoring via 0…10V
- Remote ?on/off“ for DC output
- Operation temp range 0-35°C (40°C on req.)
- Mains input 3 x 400V +/-10% 50-60Hz, P.F. >0,95
- Inrush current limit
- Air cooling by fan, air volume req. max. 1440m3/h
- Stainless steel unit, built-in style
- DC output connection via copper bars
- Options
- Programming via PC (RS485/RS232/LAN)
- Insulated analog amplifiers
- Remote sensing
- Regulation deviation <1%
- Ripple (300 Hz) <1%
| Model | Voltage (V) | Current (A) |  Power (W) |
| EA-PS 1020-2000 | 0-20 | 0-750 | 0-15000 |
| EA-PS 1060-1000 | 0-40 | 0-350 | 0-14000 |
| EA-PS 1060-6000 | 0-60 | 0-250 | 0-15000 |
| EA-PS 1080-500 | 0-80 | 0-200 | 0-16000 |
| EA-PS 1150-250 | 0-150 | 0-150 | 0-15000 |
| EA-PS 1300-120 | 0-300 | 0-50 | 0-15000 |
| EA-PS 1600-50 | 0-600 | 0-25 | 0-15000 |
| EA-PS 1900-40 | 0-900 | 0-20 | 0-18000 |
DC Power Supplies PS 1000-20KW 18000W – 20000W
Key Features
- High efficiency >85%
- Output power ratings: 18kW up to 20kW
- Output voltages: 0…20V up to 0…900V
- Output currents: 0…20A up to 0…1000A
- Constant voltage and current regulation
- 3-digit LED display for voltage and current
- U / I programmable via 0…10V
- U / I monitoring via 0…10V
- Remote ?on/off“ for DC output
- Operation temp range 0-35°C (40°C on req.)
- Mains input 3 x 400V +/-10% 50-60Hz, P.F. >0,95
- Inrush current limit
- Air cooling by fan, air volume req. max. 1440m3/h
- Stainless steel housing, for 19“ rack systems
- DC output connection via copper bars
- Parallel and series connection up to 30 units
- Options
- Programming via PC (RS485/RS232/LAN)
- Insulated analogue amplifiers
- Remote sensing
- Regulation deviation <1%
- Ripple (300 Hz) <1%
| Model | Voltage (V) | Current (A) |  Power (W) |
| EA-PS 1020-1000 WC | 0-20 | 0-1000 | 0-20000 |
| EA-PS 1040-500 WC | 0-40 | 0-500 | 0-20000 |
| EA-PS 1060-300Â WC | 0-60 | 0-300 | 0-18000 |
| EA-PS 1080-250Â WC | 0-80 | 0-250 | 0-20000 |
| EA-PS 1150-120Â WC | 0-150 | 0-120 | 0-18000 |
| EA-PS 1300-60Â WC | 0-300 | 0-60 | 0-18000 |
| EA-PS 1600-30Â WC | 0-600 | 0-30 | 0-18000 |
| EA-PS 1900-20Â WC | 0-900 | 0-20 | 0-18000 |
DC Power Supplies PS 1000-40KW 36000W – 40000W
Key Features
- High efficiency >85%
- Output power ratings: 36kW up to 40kW
- Output voltages: 0…20V up to 0…900V
- Output currents: 0…40A up to 0…1000A
- Constant voltage and current regulation
- 3-digit LED display for voltage and current
- U / I programmable via 0…10V
- U / I monitoring via 0…10V
- Remote ?on/off“ for DC output
- Operation temp range 0-35°C (40°C on req.)
- Mains input 3 x 400V +/-10% 50-60Hz, P.F. >0,95
- Soft start function
- Water cooling, temperature controlled
- Stainless steel unit IP53, for 19“ rack systems
- DC output connection via copper bars
- Parallel and series connection up to 30 units
- Options
- Programming via PC (RS485/RS232/LAN)
- Insulated analogue amplifiers
- Remote sensing
- Regulation deviation <1%
- Ripple (300 Hz) <1%
| Model | Voltage (V) | Current (A) |  Power (W) |
| EA-PS 1020-2000 WC | 0-20 | 0-1000 | 0-20000 |
| EA-PS 1040-1000 WC | 0-40 | 0-500 | 0-20000 |
| EA-PS 1060-600Â WC | 0-60 | 0-300 | 0-18000 |
| EA-PS 1080-500Â WC | 0-80 | 0-250 | 0-20000 |
| EA-PS 1150-250Â WC | 0-150 | 0-120 | 0-18000 |
| EA-PS 1300-120 WC | 0-300 | 0-60 | 0-18000 |
| EA-PS 1600-60Â WC | 0-600 | 0-30 | 0-18000 |
| EA-PS 1900-40Â WC | 0-900 | 0-20 | 0-18000 |

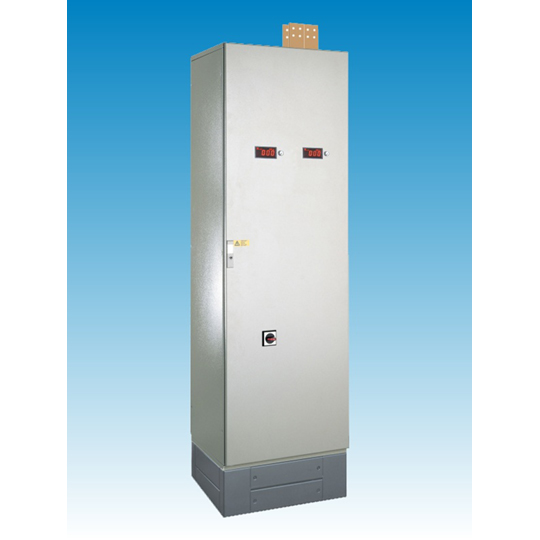

DC Power Supplies PS 1000-75KW 60000W – 80000W
Key Features
- High efficiency >85%
- Output power ratings: 60kW up to 80kW
- Output voltages: 0…20V up to 0…900V
- Output currents: 0…75A up to 0…3500A
- Regulation deviation <2%, Ripple (300)Hz <2%
- Constant voltage and current regulation
- U / I programmable via 0…10V
- U / I monitoring via 0…10V
- Remote ?on/off“ for DC output
- Operation temp range 0-35°C (40°C on req.)
- Mains input 3 x 400V +/-10% 50-60Hz, P.F. >0,95
- Inrush current limiter
- Mains circuit breaker and mains power switch incl.
- Air cooling (AC), Water cooling (WC)
- Stainless steel unit IP53, for 19“ rack systems
- Cabinet Rittal TS, RAL 7035 powder coated
- Options
- External LCD control unit EA-PS 280
- Programming via PC (RS485/RS232/LAN)
- Insulated analogue amplifiers
- Remote sensing
- Regulation deviation <1%
- Ripple (300 Hz) <1%
| Model | Voltage (V) | Current (A) |  Power (W) |
| EA-PS 1020-3500 WC | 0-20 | 0-3500 | 0-70000 |
| EA-PS 1040-1700 WC | 0-40 | 0-1700 | 0-68000 |
| EA-PS 1060-1200Â WC | 0-60 | 0-1200 | 0-72000 |
| EA-PS 1080-1000Â WC | 0-80 | 0-1000 | 0-80000 |
| EA-PS 1150-500Â WC | 0-150 | 0-500 | 0-75000 |
| EA-PS 1300-250 WC | 0-300 | 0-250 | 0-75000 |
| EA-PS 1600-100Â WC | 0-600 | 0-100 | 0-60000 |
| EA-PS 1900-75 WC | 0-900 | 0-75 | 0-67500 |
DC Power Supplies PS 1000-120KW 117000W – 120000W
Key Features
- High efficiency >85%
- Output power ratings: 117kW up to 120kW
- Output voltages: 0…20V up to 0…900V
- Output currents: 0…130A up to 0…60000A
- Regulation deviation <2%, Ripple (300)Hz <2%
- Constant voltage and current regulation
- U / I programmable via 0…10V
- U / I monitoring via 0…10V
- Remote ?on/off“ for DC output
- Operation temp range 0-35°C (40°C on req.)
- Mains input 3 x 400V +/-10% 50-60Hz, P.F. >0,95
- Inrush current limiter
- Mains circuit breaker and mains power switch incl.
- Air cooling (AC) or Water cooling (WC)
- Cabinet Rittal TS, RAL 7035 powder coated
- Options
- External LCD control unit EA-PS 280
- Programming via PC (RS485/RS232/LAN)
- Insulated analogue amplifiers
- Remote sensing
- Regulation deviation <1%
- Ripple (300 Hz) <1%
| Model | Voltage (V) | Current (A) |  Power (W) |
| EA-PS 1020-6000 WC | 0-20 | 0-6000 | 0-120000 |
| EA-PS 1040-3000 WC | 0-40 | 0-3000 | 0-120000 |
| EA-PS 1060-1200Â WC | 0-60 | 0-2000 | 0-120000 |
| EA-PS 1080-1000Â WC | 0-80 | 0-1500 | 0-120000 |
| EA-PS 1150-500Â WC | 0-150 | 0-800 | 0-120000 |
| EA-PS 1300-250 WC | 0-300 | 0-400 | 0-120000 |
| EA-PS 1600-100Â WC | 0-600 | 0-200 | 0-120000 |
| EA-PS 1900-75 WC | 0-900 | 0-130 | 0-117000 |
