Power Products

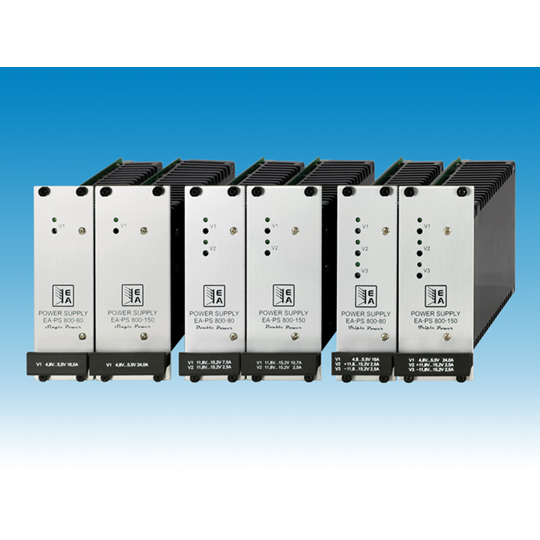

The models of series EA-PS 800 19” are available as single, dual or triple output plug-in power supplies. By combining the synchronized rectifier and semi-resonant converter principle, an efficiency of up to 92% is achieved, making them highly efficient and extremely reliable.
r Products
The models of series EA-PS 800 19” are available as single, dual or triple output plug-in power supplies. By combining the synchronized rectifier and semi-resonant converter principle, an efficiency of up to 92% is achieved, making them highly efficient and extremely reliable.
Key Features
- Wide input voltage range 90…264V with active PFC
- High efficiency up to 92%
- Output powers: 58W up to 240W
- Output voltages: 3.3V up to 24V
- Output currents: 2.5A up to 30A
- Single, double or triple output
- Power limited, all outputs for full power
- All outputs separately adjustable and regulated
- Overvoltage protection (OVP)
- Over temperature protection (OT)
- Remote on/off and power fail signal
- Remote sense
- Options
- Power sharing between mains outputs
- Without front plate
