The PSB-2000 series, which is a high power density, programmable and multi-range output DC power supply. There are six models in the series including one power booster unit. The PSB-2000 series has the output voltage of 0~80V and 0~800V, and the output power ranges of 0~400W and 0~800W. The multi-range output functionality facilitates flexible collocations of higher voltage and larger current under the rated power range. Both series and parallel connections can be applied to the PSB-2000 series to fulfill the requirements of higher power output range.
r Products
The PSB-2000 series, which is a high power density, programmable and multi-range output DC power supply. There are six models in the series including one power booster unit. The PSB-2000 series has the output voltage of 0~80V and 0~800V, and the output power ranges of 0~400W and 0~800W. The multi-range output functionality facilitates flexible collocations of higher voltage and larger current under the rated power range. Both series and parallel connections can be applied to the PSB-2000 series to fulfill the requirements of higher power output range.
Key Features
- Output Voltage Rating : 80V/800V
- Output Power Rating : 400W~800W
- Constant Power Output for Multi-Range(V&I)Operation
- Series and Parallel Operation(2 Units in Series or 4 Units in
parallel Maximum) - Sequence function edited by PC will be controlled through power supply
- optional interface
- Standard Interafce: RS-232C / USB / Analog Control Interface
- Optional Interface: GPIB
- PSB-2400L (0~80V/ 0~40A / 400W) Multi-Range DC Power Supply
- PSB-2800L (0~80V / 0~80A / 800W) Multi-Range DC Power Supply

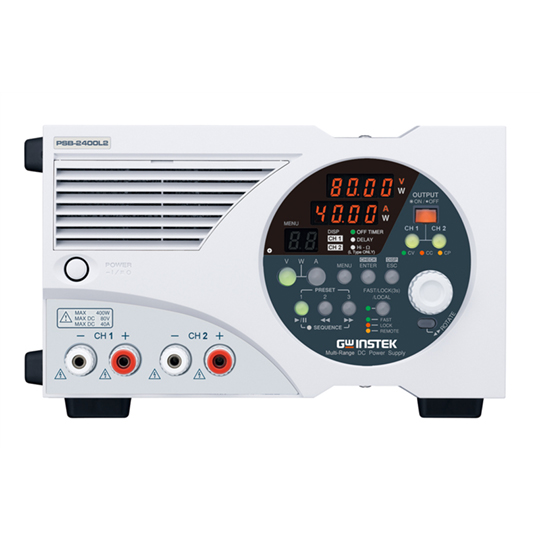

- PSB-2400L2 (0~80V x 2 / 0~40A x 2 / 800W) Multi-Range DC Power Supply
- PSB-2400H (0~800V / 0~40A / 400W) Multi-Range DC Power Supply
- PSB-2800H (0~800V / 0~80A / 800W) Multi-Range DC Power Supply

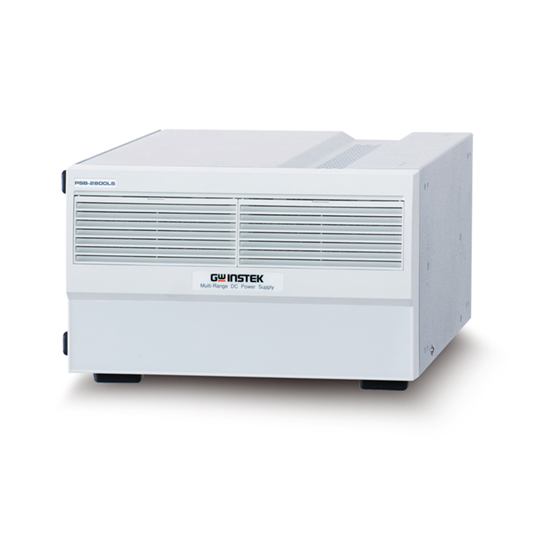

- PSB-2800LS 800W Slave (Booster) Unit For Current Extension Only
