The microprocessor controlled chassis mounting power supplies from series EA-PSI 800 R have a multitude of functions and features making the use of this equipment easier and more effective.

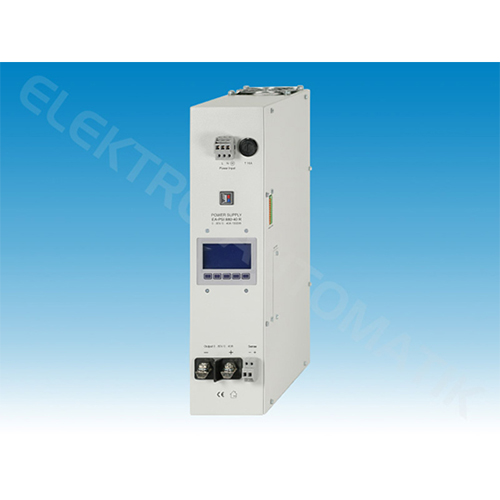

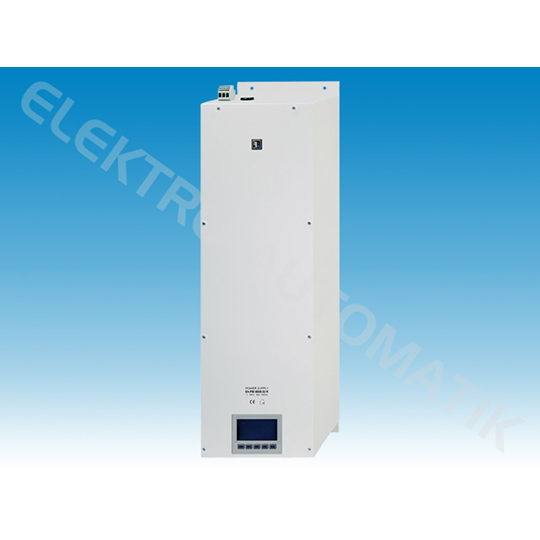

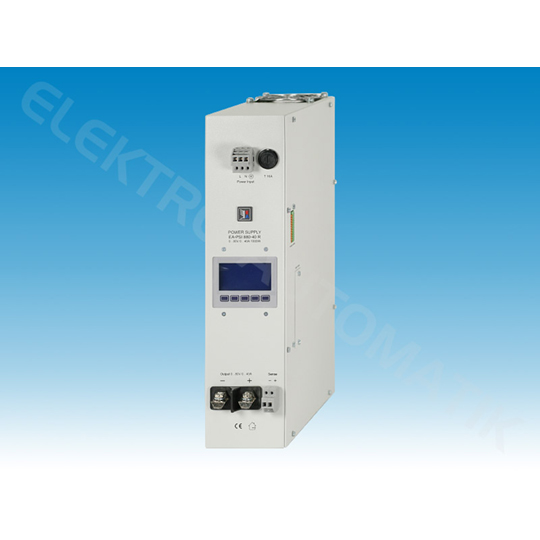

PSI 800R Microprocessor Controlled Chassis
PSI 800R Microprocessor controlled chassis mounting power supply. Uses active PFC. Worldwide mains supply operation. Output power autorange up to 5kW.
Key Features
Key Features
- Wide range input 90…264V (up to 1.5kW models)
- Two-phase input 340…460V (5kW models)
- High eficiency up to 95.5%
- Output power ratings: 320W up to 0…5000W
- Output voltages: 0…16V up to 0…500V
- Output currents: 0…4A up to 0…170A
- Auto-ranging output stage**
- Overvoltage protection (OVP)
- Overtemperature protection (OT)
- Graphic display for all values and functions
- Remote sense with automatic detection
- Analogue interface for 0…10V or 0…5V
- Alarm management
- Natural convection for cooling*
- Temperature controlled fans for cooling**
- Various options
Model Specifications
| Model | Voltage (V) | Current (A) |  Power (W) | Efficiency |
| PSI 816-20 R | 0-16 | 0-20 | 0-320 | 90.5% |
| PSI 832-10 R | 0-32 | 0-10 | 0-320 | 89% |
| PSI 865-05 R | 0-65 | 0-5 | 0-325 | 92% |
| PSI 832-20 R | 0-32 | 0-20 | 0-640 | 90.5% |
| PSI 865-10 R | 0-65 | 0-10 | 0-650 | 91% |
| PSI 8160-04 R | 0-160 | 0-4 | 0-640 | 92% |
| PSI 880-40 R | 0-80 | 0-40 | 0-1000 | 93% |
| PSI 8360-10 R | 0-360 | 0-10 | 0-1000 | 93% |
| PSI 880-60 R | 0-80 | 0-60 | 0-1500 | 93% |
| PSI 8360-15 R | 0-360 | 0-15 | 0-1500 | 93% |
| PSI 880-170 R | 0-80 | 0-170 | 0-5000 | 93% |
| PSI 8200-70 R | 0-200 | 0-70 | 0-5000 | 95.2% |
| PSI 8500-30 R | 0-500 | 0-30 | 0-5000 | 95.5% |
