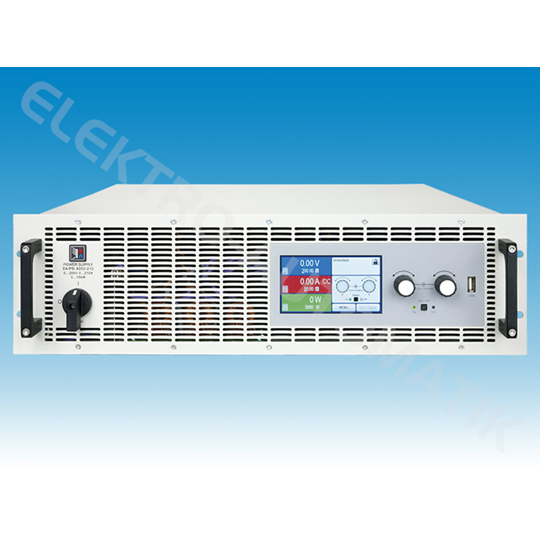

PSI 9000 3U Series High Efficiency Laboratory Power Supplies (Elektro-Automatik)
The microprocessor controlled high efficiency laboratory power supplies of series EA-PSI 9000 3U offer multiple functions and features in their standard version. User friendly, interactive menu navigation makes the use of this equipment remarkably easy and most effective.
Key Features
Elektro-Automatik PSI 9000 3U Series Lab Power Supplies
The microprocessor controlled high efficiency laboratory power supplies of Elektro-Automatik‘s EA-PSI 9000 3U offer multiple functions and features in their standard version. User-friendly, interactive menu navigation makes the use of this equipment remarkably easy and most effective.
User and process profiles can be edited, saved and archived so that the reproducibility of a test or other application is improved.
In order to achieve even higher output power, cabinets with up to 150kW and up to 42U size can be configured to suit the user‘s requirements.
EA-PSI 9000 3U Key Features
- Multi-phase input 340-460VAC.
- High efficiency up to 95,5%.
- Output power ratings: 0-3.3kW, 0-5kW, 0-6.6kW.
- 0-10kW, 0-15kW, expandable up to 150kW.
- Output voltages: 0-40V up to 0-1500V.
- Output currents: 0-30A up to 0-510A.
- Expandable up to 0-5100A.
- Flexible, power regulated output stage.
- Various protection circuits (OVP, OCP, OPP, OTP).
- Intuitive touch panel with display for values, status and notifications.
- Remote sensing with automatic detection.
- Analog interface with
- U / I / P programmable via 0-10V or 0-5V.
- U / I monitoring via 0-10V or 0-5V.
- Integrated true function generator.
- Photovoltaic array simulation.
- Internal resistance simulation and regulation.
- Memory bank for user profiles.
- Temperature controlled fans for cooling.
- 40V models according to SELV (EN 60950).
- USB port integrated.
- EMC TÜV approved for IEC 61000-6-2:2006 Class B.
- Optional, digital interface modules.
- SCPI command language supported.
Model Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Efficiency |
| PSI 9040-170 3U | 0-40 | 0-170 | 0-3,300 | 93% |
| PSI 9080-170 3U | 0-80 | 0-170 | 0-5,000 | 93% |
| PSI 9200-70 3U | 0-200 | 0-70 | 0-5,000 | 95% |
| PSI 9360-40 3U | 0-360 | 0-40 | 0-5,000 | 93% |
| PSI 9500-30 3U | 0-500 | 0-30 | 0-5,000 | 95.5% |
| PSI 9750-20 3U | 0-750 | 0-20 | 0-5,000 | 94% |
| PSI 9040-340 3U | 0-40 | 0-340 | 0-6,600 | 93% |
| PSI 9040-510 3U | 0-40 | 0-510 | 0-10,000 | 93% |
| PSI 9080-340 3U | 0-80 | 0-340 | 0-10,000 | 93% |
| PSI 9200-140 3U | 0-200 | 0-140 | 0-10,000 | 95% |
| PSI 9360-80 3U | 0-360 | 0-80 | 0-10,000 | 93% |
| PSI 9500-60 3U | 0-500 | 0-60 | 0-10,000 | 95% |
| PSI 9750-40 3U | 0-40 | 0-40 | 0-10,000 | 94% |
| PSI 91000-30 3U | 0-30 | 0-30 | 0-10,000 | 95% |
| PSI 9080-510 3U | 0-80 | 0-510 | 0-15,000 | 93% |
| PSI 9200-210 3U | 0-200 | 0-210 | 0-15,000 | 95% |
| PSI 9360-120 3U | 0-360 | 0-120 | 0-15,000 | 93% |
| PSI 9500-90 3U | 0-500 | 0-90 | 0-15,000 | 95% |
| PSI 9750-60 3U | 0-750 | 0-60 | 0-15,000 | 94% |
| PSI 91500-30 3U | 0-1500 | 0-30 | 0-15,000 | 95% |
