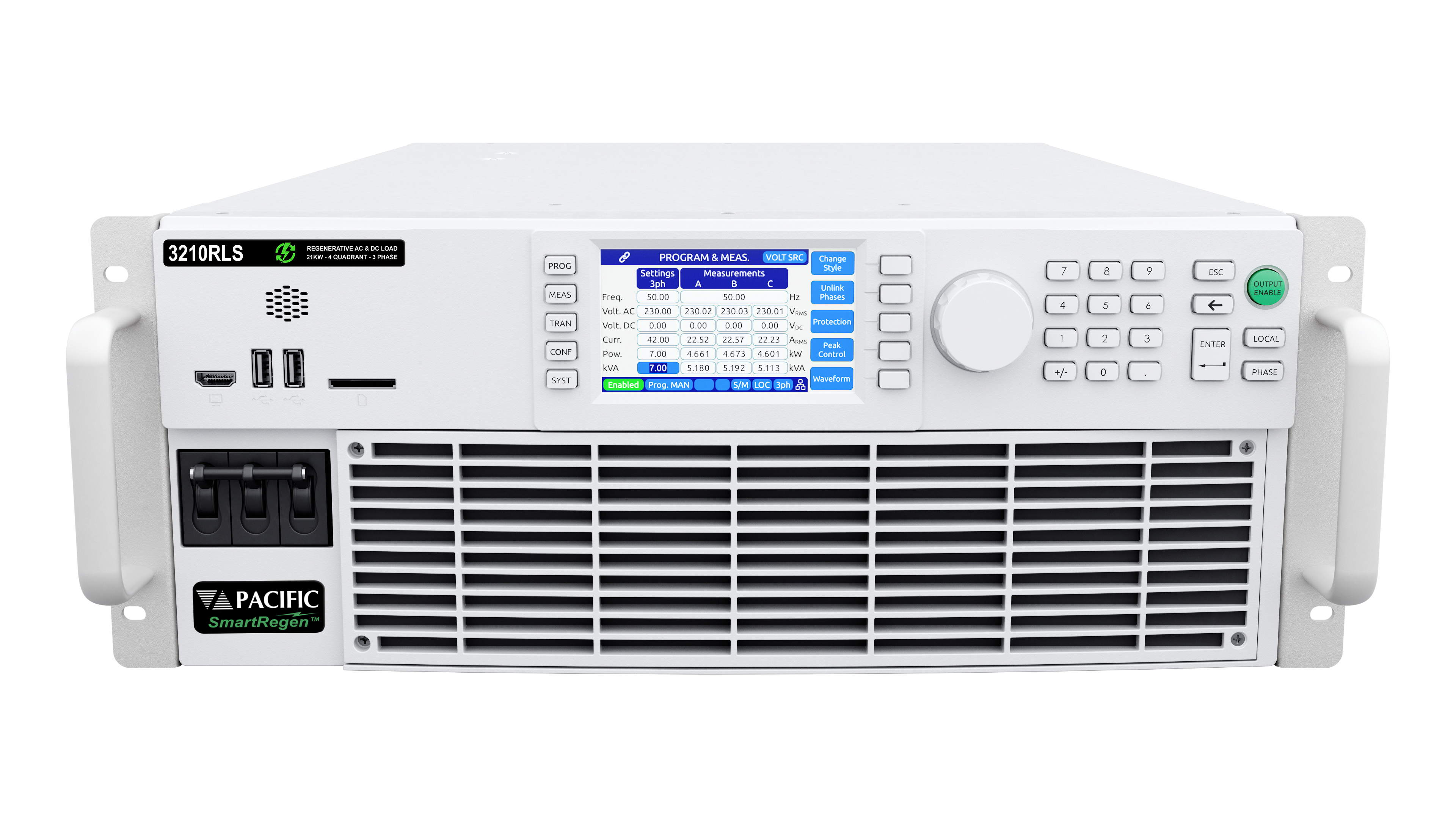

Introducing the RLS Series
The industry’s most flexible, high performing, and intelligent regenerative AC & DC electronic load.
Regenerative 4-Quadrant AC and DC Load
Pacific Power Source’s RLS Regenerative Load Simulator is designed to emulate real-world normal and abnormal load conditions for testing a wide range of AC or DC power generating or conversion equipment.
The RLS’s high-power density provides 6kVA/kW up to 21kVA/kW in a 4U chassis and can parallel up to 168kVA/kW in a single 19” cabinet. Dual cabinets can parallel up to 252kVA/kW.
The RLS Series is modular by design and scalable in power. Its flexible channel inputs and advanced control and programming capabilities make it ideal for generating complex user-defined current waveforms. Full operator control of current, power and power factor allows for testing a wide range AC or DC power sources. The RLS can also support testing your Power Generating
Equipment to regulatory compliance standards.
RLS Series Application Examples
- EV Charger Load Testing, On Board Chargers (OBC), Wallboxes, V2G, V2H, V2X, and EV Charging Cables
- Solar PV/Grid-Tied Inverters RLC Loading for Anti-Islanding
- Energy Storage Systems (ESS), Home ESS Load Testing
- UPS Products and PDUs AC Load Testing
- EV Battery Discharge Testing
- Aerospace Power and Converter Testing
- Utility Power Quality and Grid Usage
RLS Series Key Features
- Regenerative Electronic Load
- 4-Quadrant AC & DC Load
- Fully Programmable
- High Power Density – Up to 21kW in 4U; Parallel up to 168kVA/kW per Cabinet, or Multiple Cabinets up to 252kW
- AC, DC
- Single, Split, Three-Phase; Multi-Channel Configurations
- Isolated Neutrals independent channel modes
- Input Voltage Range:
350Vac L-N/606Vac L-L or ±500Vdc - Wide Frequency Range 15Hz – 1200Hz
- Galvanic Isolation from Facility AC Input to Load Input and Between Input Phases / Channels
- Dynamic, Quiet and Efficient Operation Using Silicon Carbide
(SiC) Based Technology - High AC Current Capability
- Waveform Capture and Scope Display
- Powerful Current Transient Programming Tools
- Generate Harmonics and Interharmonics Currents
- Analog I/O Signals Standard
- Intuitive User Interface Using Softkeys & Shuttle SmartSource Suite: Web Browser Control
