EL DC Electronic Loads

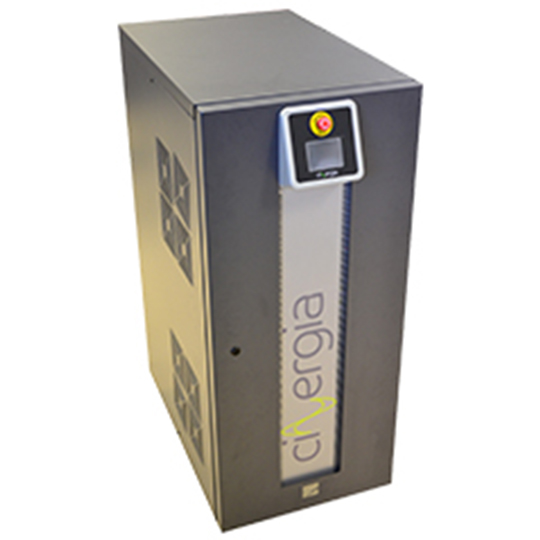

EL-DC Electronic Loads are devices that behave as a load and are designed to test electric and electronic DC sources. While most electronic loads are dissipative, CINERGIA offers a comprehensive range of DC, AC and AC&DC regenerative electronic loads producing significant energy savings, optimizing the electrical and cooling installation and reducing test costs.

Brand: Cinergia SKU: 439
Categories: Battery Test Charge & Emulate, DC Loads, DC Power, LED Loads, Lighting, Motor Testing, Motors, Power Products, Test & Measurement Equipment
Description

Cinergia Power Solutions

EL-DC Electronic Loads are devices that behave as a load and are designed to test electric and electronic DC sources. While most electronic loads are dissipative, CINERGIA offers a comprehensive range of DC, AC and AC&DC regenerative electronic loads producing significant energy savings, optimizing the electrical and cooling installation and reducing test costs.

Key Features

Key Features

Cinergia EL DC Electronic Loads Key Features

  • 6.75 – 160 kW
  • 2/4 Quadrant Power Supply
  • Regenerative up to 100% rated power

1 channel Output:

  • 0 to 750V, 0 to ±690A

3 channels Output:

  • 0 to 750V, 0 to ±230A/ch

Bipolar Output:

  • -750 to +750V, 0 to ±230A
  • CC, CP, CR, CV modes
  • AC&DC version available
Model Rated Rated Current

Dimensions: DxWxH



EL7.5-DC 7.5kVA /

6.75kW

3 Channels (0-750V): ±10A

1 Channel (0-750V): ±30A

Bipolar (-750 to 750V): ±10A

700x450x1100
EL10-DC 10kVA /

9kW

3 Channels (0-750V): ±15A

1 Channel (0-750V): ±45A

Bipolar (-750 to 750V): ±15A

700x450x1100
EL15-DC 15kVA /

13,5kW

3 Channels (0-750V): ±20A

1 Channel (0-750V): ±60A

Bipolar (-750 to 750V): ±20A

700x450x1100
EL20-DC 20kVA /

18kW

3 Channels (0-750V): ±25A

1 Channel (0-750V): ±75A

Bipolar (-750 to 750V): ±25A

700x450x1100
EL30-DC 30kVA /

27kW

3 Channels (0-750V): ±40A

1 Channel (0-750V): ±120A

Bipolar (-750 to 750V): ±40A

700x450x1100
EL40-DC 40kVA /

36kW

3 Channels (0-750V): ±50A

1 Channel (0-750V): ±150A

Bipolar (-750 to 750V): ±50A

700 x450x1100
EL50-DC 50kVA /

45kW

3 Channels (0-750V): ±65A

1 Channel (0-750V): ±195A

Bipolar (-750 to 750V): ±65A

700x450x1100
EL60-DC 60kVA /

54kW

3 Channels (0-750V): ±80A

1 Channel (0-750V): ±240A

Bipolar (-750 to 750V): ±80A

880x590x1320
EL80-DC 80kVA /

72kW

3 Channels (0-750V): ±105A

1 Channel (0-750V): ±315A

Bipolar (-750 to 750V): ±105A

880x590x1320
EL100-DC 100kVA /

90kW

3 Channels (0-750V): ±130A

1 Channel (0-750V): ±390A

Bipolar (-750 to 750V): ±130A

880x590x1320
EL120-DC 120kVA /

108kW

3 Channels (0-750V): ±130A

1 Channel (0-750V): ±390A

Bipolar (-750 to 750V): ±130A

880x590x1320
EL160-DC 160kVA /

128kW

3 Channels (0-750V): ±155A

1 Channel (0-750V): ±465A

Bipolar (-750 to 750V): ±155A

850x900x2000
Model Specifications

Model Specifications

Cinergia Power Solutions

EL-DC Electronic Loads are devices that behave as a load and are designed to test electric and electronic DC sources. While most electronic loads are dissipative, CINERGIA offers a comprehensive range of DC, AC and AC&DC regenerative electronic loads producing significant energy savings, optimizing the electrical and cooling installation and reducing test costs.

Cinergia EL DC Electronic Loads Key Features

  • 6.75 – 160 kW
  • 2/4 Quadrant Power Supply
  • Regenerative up to 100% rated power

1 channel Output:

  • 0 to 750V, 0 to ±690A

3 channels Output:

  • 0 to 750V, 0 to ±230A/ch

Bipolar Output:

  • -750 to +750V, 0 to ±230A
  • CC, CP, CR, CV modes
  • AC&DC version available
Model Rated Rated Current

Dimensions: DxWxH



EL7.5-DC 7.5kVA /

6.75kW

3 Channels (0-750V): ±10A

1 Channel (0-750V): ±30A

Bipolar (-750 to 750V): ±10A

700x450x1100
EL10-DC 10kVA /

9kW

3 Channels (0-750V): ±15A

1 Channel (0-750V): ±45A

Bipolar (-750 to 750V): ±15A

700x450x1100
EL15-DC 15kVA /

13,5kW

3 Channels (0-750V): ±20A

1 Channel (0-750V): ±60A

Bipolar (-750 to 750V): ±20A

700x450x1100
EL20-DC 20kVA /

18kW

3 Channels (0-750V): ±25A

1 Channel (0-750V): ±75A

Bipolar (-750 to 750V): ±25A

700x450x1100
EL30-DC 30kVA /

27kW

3 Channels (0-750V): ±40A

1 Channel (0-750V): ±120A

Bipolar (-750 to 750V): ±40A

700x450x1100
EL40-DC 40kVA /

36kW

3 Channels (0-750V): ±50A

1 Channel (0-750V): ±150A

Bipolar (-750 to 750V): ±50A

700 x450x1100
EL50-DC 50kVA /

45kW

3 Channels (0-750V): ±65A

1 Channel (0-750V): ±195A

Bipolar (-750 to 750V): ±65A

700x450x1100
EL60-DC 60kVA /

54kW

3 Channels (0-750V): ±80A

1 Channel (0-750V): ±240A

Bipolar (-750 to 750V): ±80A

880x590x1320
EL80-DC 80kVA /

72kW

3 Channels (0-750V): ±105A

1 Channel (0-750V): ±315A

Bipolar (-750 to 750V): ±105A

880x590x1320
EL100-DC 100kVA /

90kW

3 Channels (0-750V): ±130A

1 Channel (0-750V): ±390A

Bipolar (-750 to 750V): ±130A

880x590x1320
EL120-DC 120kVA /

108kW

3 Channels (0-750V): ±130A

1 Channel (0-750V): ±390A

Bipolar (-750 to 750V): ±130A

880x590x1320
EL160-DC 160kVA /

128kW

3 Channels (0-750V): ±155A

1 Channel (0-750V): ±465A

Bipolar (-750 to 750V): ±155A

850x900x2000
EL200-DC 200kVA /

160kW

3 Channels (0-750V): ±185A

1 Channel (0-750V): ±555A

Bipolar (-750 to 750V): ±185A

850x900x2000
Data Sheet

Data Sheet

For more detailed information, please download our product data sheet
