Home  /  AC Power Sources  /  AC Power  /

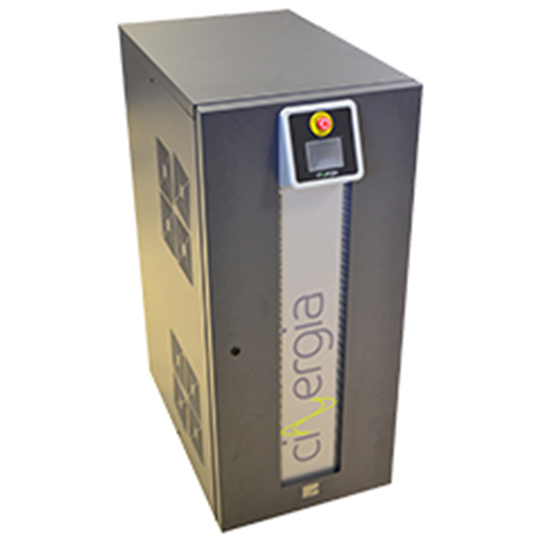

GE AC/DC Models AC/DC Power Sources

GE-AC&DC is the integration of two equipment in one: a GE-AC and a DCPS in a single cabinet. The equipment can be used in AC or in DC test and lab platforms providing a high exibility at a very competitive price, taking advantage of the shared hardware.

Brand: Cinergia SKU: 438
Categories: AC & DC Power Sources, AC Power, AC&DC Power Sources, DC Power, Motor Testing, Power Products, Test & Measurement Equipment

Rent AC/DC Power Products

To view our rental options on AC/DC Power Products, please click here

Description

Cinergia Power Solutions

GE-AC&DC is the integration of two devices into one: a GE-AC and a DCPS in a single cabinet. The equipment can be used in AC or in DC test and lab platforms providing a high flexibility at a very competitive price, taking advantage of the shared hardware.

Key Features

Key Features

Cinergia AC/DC Key Features:

  • 7.5 –200kVA / 6.75-160kW
  • 4 Quadrant Power Supply
  • Regenerative up to 100% rated power

AC OUTPUT:

  • 0-480 Vrms, l-l
  • 0-277 Vrms, l-n
  • 0-230Arms
  • 10-400Hz
  • Disturbances

DC OUTPUT:

1 channel Output:

  • 0 to 750V, 0 to ±690A

3 channels Output:

  • 0 to 750V, 0 to ±230A/ch

Bipolar Output

  • -750 to +750V, 0 to ± 230A
Model Rated Rated Current AC Rated Current DC Dimensions
DxWxH (mm)
GE7.5-AC&DC 7.5kVA /

6.75kW

3 channels: 10Arms/ch

1 channel: 30Arms(Parallel)

3 channels: ±10A/ch

1 channel: ±30A (Parallel)

770x450x1100
GE10-AC&DC 10kVA /

9kW

3 channels: 15Arms/ch

1 channel: 45Arms(Parallel)

3 channels: ±15A/ch

1 channel: ±45A (Parallel)

770x450x1100
GE15-AC&DC 15kVA /

13.5kW

3 channels: 20Arms/ch

1 channel: 60Arms(Parallel)

3 channels: ±20A/ch

1 channel: ±60A (Parallel)

770x450x1100
GE20-AC&DC 20kVA /

18kW

3 channels: 25Arms/ch

1 channel: 75Arms(Parallel)

3 channels: ±25A/ch

1 channel: ±75A (Parallel)

770x450x1100
GE30-AC&DC 30kVA /

27kW

3 channels: 40Arms/ch

1 channel: 75Arms(Parallel)

3 channels: ±40A/ch

1 channel: ±120A (Parallel)

770x450x1100
GE40-AC&DC 40kVA /

36kW

3 channels: 50Arms/ch

1 channel: 150Arms(Parallel)

3 channels: ±50A/ch

1 channel: ±150A (Parallel)

770x450x1100
GE50-AC&DC 50kVA /

45kW

3 channels: 65Arms/ch

1 channel: 195Arms(Parallel)

3 channels: ±65A/ch

1 channel: ±195A (Parallel)

770x450x1100x
GE60-AC&DC 60kVA /

54kW

3 channels: 80Arms/ch

1 channel: 240Arms(Parallel)

3 channels: ±80A/ch

1 channel: ±240A (Parallel)

880x590x1320
GE80-AC&DC 80kVA /

72kW

3 channels: 105Arms/ch

1 channel: 315Arms(Parallel)

3 channels: ±105A/ch

1 channel: ±315A (Parallel)

880x590x1320
GE100-AC&DC 100kVA /

90kW

3 channels: 130Arms/ch

1 channel: 390Arms(Parallel)

3 channels: ±130A/ch

1 channel: ±390A (Parallel)

880x590x1320
GE120-AC&DC 120kVA /

108kW

3 channels: 155Arms/ch

1 channel: 465Arms(Parallel)

3 channels: ±130A/ch

1 channel: ±390A (Parallel)

880x590x1320
GE160-AC&DC 160kVA /

128kW

3 channels: 185Arms/ch

1 channel: 555A ms(Parallel)

3 channels: ±155A/ch

1 channel: ±465A (Parallel)

850x900x2000
GE200-AC&DC 200kVA /

160kW

3 channels: 23

Model Specifications

Model Specifications

Cinergia Power Solutions

GE-AC&DC is the integration of two devices into one: a GE-AC and a DCPS in a single cabinet. The equipment can be used in AC or in DC test and lab platforms providing a high flexibility at a very competitive price, taking advantage of the shared hardware.

Cinergia AC/DC Key Features:

  • 7.5 –200kVA / 6.75-160kW
  • 4 Quadrant Power Supply
  • Regenerative up to 100% rated power

AC OUTPUT:

  • 0-480 Vrms, l-l
  • 0-277 Vrms, l-n
  • 0-230Arms
  • 10-400Hz
  • Disturbances

DC OUTPUT:

1 channel Output:

  • 0 to 750V, 0 to ±690A

3 channels Output:

  • 0 to 750V, 0 to ±230A/ch

Bipolar Output

  • -750 to +750V, 0 to ± 230A
Model Rated Rated Current AC Rated Current DC Dimensions
DxWxH (mm)
GE7.5-AC&DC 7.5kVA /

6.75kW

3 channels: 10Arms/ch

1 channel: 30Arms(Parallel)

3 channels: ±10A/ch

1 channel: ±30A (Parallel)

770x450x1100
GE10-AC&DC 10kVA /

9kW

3 channels: 15Arms/ch

1 channel: 45Arms(Parallel)

3 channels: ±15A/ch

1 channel: ±45A (Parallel)

770x450x1100
GE15-AC&DC 15kVA /

13.5kW

3 channels: 20Arms/ch

1 channel: 60Arms(Parallel)

3 channels: ±20A/ch

1 channel: ±60A (Parallel)

770x450x1100
GE20-AC&DC 20kVA /

18kW

3 channels: 25Arms/ch

1 channel: 75Arms(Parallel)

3 channels: ±25A/ch

1 channel: ±75A (Parallel)

770x450x1100
GE30-AC&DC 30kVA /

27kW

3 channels: 40Arms/ch

1 channel: 75Arms(Parallel)

3 channels: ±40A/ch

1 channel: ±120A (Parallel)

770x450x1100
GE40-AC&DC 40kVA /

36kW

3 channels: 50Arms/ch

1 channel: 150Arms(Parallel)

3 channels: ±50A/ch

1 channel: ±150A (Parallel)

770x450x1100
GE50-AC&DC 50kVA /

45kW

3 channels: 65Arms/ch

1 channel: 195Arms(Parallel)

3 channels: ±65A/ch

1 channel: ±195A (Parallel)

770x450x1100x
GE60-AC&DC 60kVA /

54kW

3 channels: 80Arms/ch

1 channel: 240Arms(Parallel)

3 channels: ±80A/ch

1 channel: ±240A (Parallel)

880x590x1320
GE80-AC&DC 80kVA /

72kW

3 channels: 105Arms/ch

1 channel: 315Arms(Parallel)

3 channels: ±105A/ch

1 channel: ±315A (Parallel)

880x590x1320
GE100-AC&DC 100kVA /

90kW

3 channels: 130Arms/ch

1 channel: 390Arms(Parallel)

3 channels: ±130A/ch

1 channel: ±390A (Parallel)

880x590x1320
GE120-AC&DC 120kVA /

108kW

3 channels: 155Arms/ch

1 channel: 465Arms(Parallel)

3 channels: ±130A/ch

1 channel: ±390A (Parallel)

880x590x1320
GE160-AC&DC 160kVA /

128kW

3 channels: 185Arms/ch

1 channel: 555A ms(Parallel)

3 channels: ±155A/ch

1 channel: ±465A (Parallel)

850x900x2000
GE200-AC&DC 200kVA /

160kW

3 channels: 230Arms/ch

1 channel: 690Arms(Parallel)

3 channels: ±185A/ch

1 channel: ±555A (Parallel)

850x900x2000
Data Sheet

Data Sheet

For more detailed information, please download our product data sheet
