Data Centre Test Equipment

From Grid to GPU

Test equipment for every stage of a data centre's power path

Grid Switchgear & PDUs UPS Server PSUs 48 V / 800 V DC

What we test here

×

Click a pin or a stage to see what gets tested there, and with what.

Cinergia

GE+ Series

Regenerative grid emulator, 7.5–160 kW, THDi below 3%

Pacific Power Source

AZX Series

Regenerative AC/DC source, 30–55 kW, with inrush current simulation

Yokogawa

WT5000

Precision power analyser, ±0.03% basic power accuracy, up to seven inputs

Yokogawa

WT1800R

Power analyser, up to six elements, harmonics to the 500th order

Associated Research

OMNIA II

Hipot to 5kV AC or 6kV DC, ground bond to 40A

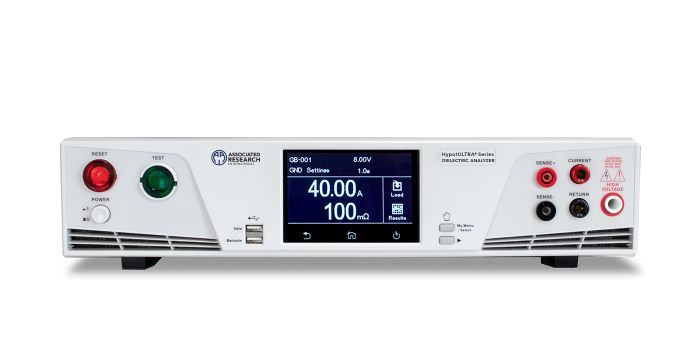

Associated Research

HypotULTRA

Hipot, ground bond to 40 A and insulation resistance in 2U

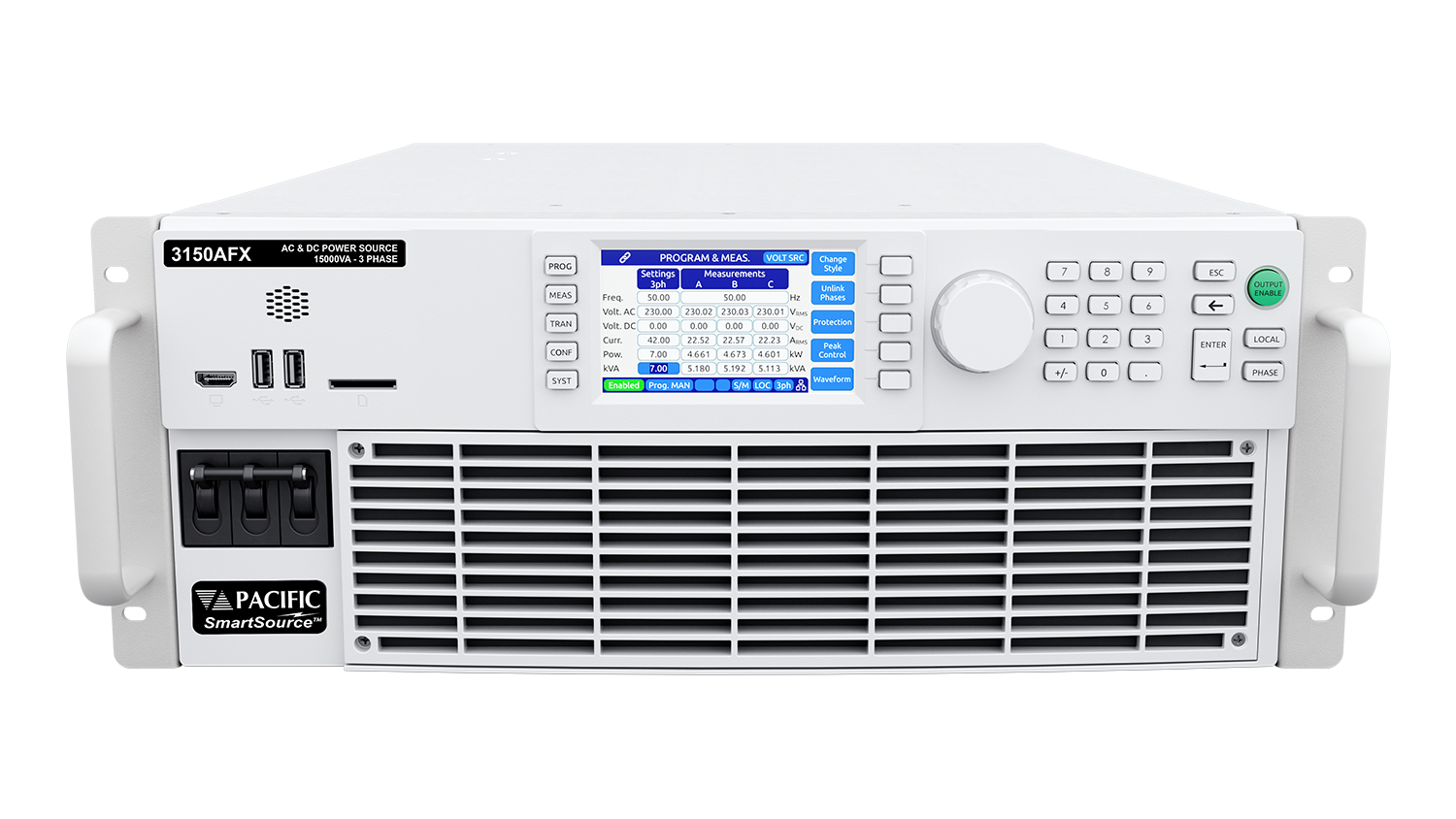

Pacific Power Source

AFX Series

AC/DC power source, 6 kVA to 150 kVA, 1 Hz to 3000 Hz

Pacific Power Source

AGX Series

Regenerative four-quadrant AC/DC source, up to 24 kVA in 4U

Cinergia

EL+ Series

Regenerative AC/DC electronic load, 7.5–160 kW

Elektro-Automatik

EA PSB 10000

30 kW bidirectional DC supply, models up to 2000 V

Elektro-Automatik

EA-ELR 10000 4U

30 kW regenerative DC load, models from 80 V to 2000 V

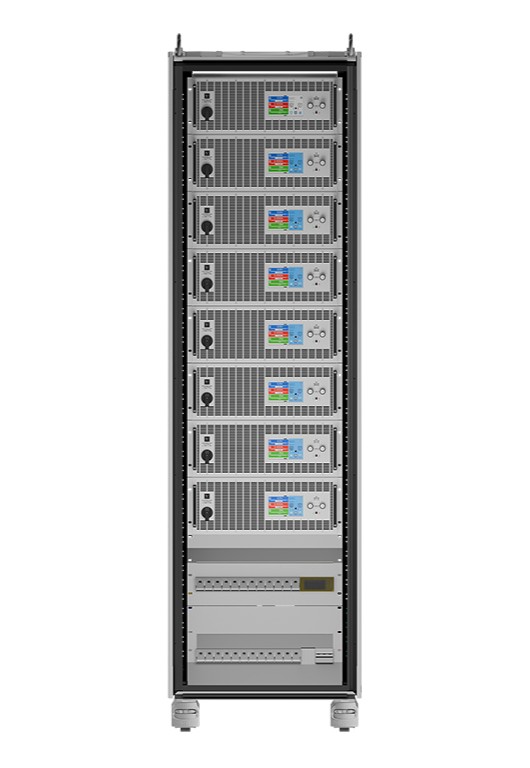

Elektro-Automatik

EA-ELR 21000 Dynamic Test System

Rack-built regenerative load, 30 kW to 240 kW per rack, slew to 12 A/µs

Elektro-Automatik

ELR 21000 30kW High Speed

High-speed 30 kW regenerative DC load, 0–1000 V, for 800 V systems

Elektro-Automatik

EA-BT 20000

30 kW regenerative battery tester

Elektro-Automatik

EA-BIM 20005

20-channel battery impedance meter, EIS from 1 mHz to 10 kHz

Beyond the diagram

Calibration, rental and applications support

Test equipment is only as useful as its last calibration. We calibrate power analysers, sources, loads and safety testers in our own laboratory, rent power sources and loads for qualification campaigns and short projects, and support you in choosing an appropriate test configuration for your equipment.

What testing does data centre power equipment need?

Every stage between a data centre's grid connection and its processors converts, distributes or protects power, and the equipment at each stage is typically tested more than once: characterisation in R&D, end-of-line and electrical safety testing in production, and factory or site acceptance before handover. The common thread is reproducing real supply conditions at the input, such as dips, interruptions, frequency changes and harmonics, applying realistic loads at the output, and measuring efficiency and power quality accurately in between.

AI workloads are changing what that testing has to cover. GPU racks draw far more power than conventional server racks and can change their load quickly, which puts more weight on load-step and transient testing of power shelves, DC-DC converters and battery backup units. With 48 V busbars now common in hyperscale racks and 800 V DC distribution emerging for new AI designs, high-voltage bidirectional DC supplies and fast regenerative loads are becoming part of the test bench.

In the UK, data centres were designated Critical National Infrastructure in September 2024, and new capacity continues to be planned. For UK designers and manufacturers of UPS, switchgear, busbar and power conversion equipment, that is likely to mean more qualification and acceptance testing. Tell us what your applications are, with ratings and target standards, and we can support you in choosing an appropriate test configuration, whether you buy, rent or need existing equipment calibrated.

Read the article: why AI data centres need stable power →
