Renewable Energy Test Equipment

From Source to Socket

Test equipment for every stage of a renewable system's electrical path

Wind Solar Hydro Grid Storage Homes

What we test here

×

Click a pin or a stage to see what gets tested there, and with what.

Cinergia

GE Series

Four-quadrant grid emulators, 7.5–160kW per unit

Pacific Power Source

RGS Series

Regenerative grid simulator, 216kVA per cabinet, systems to 1.3MVA

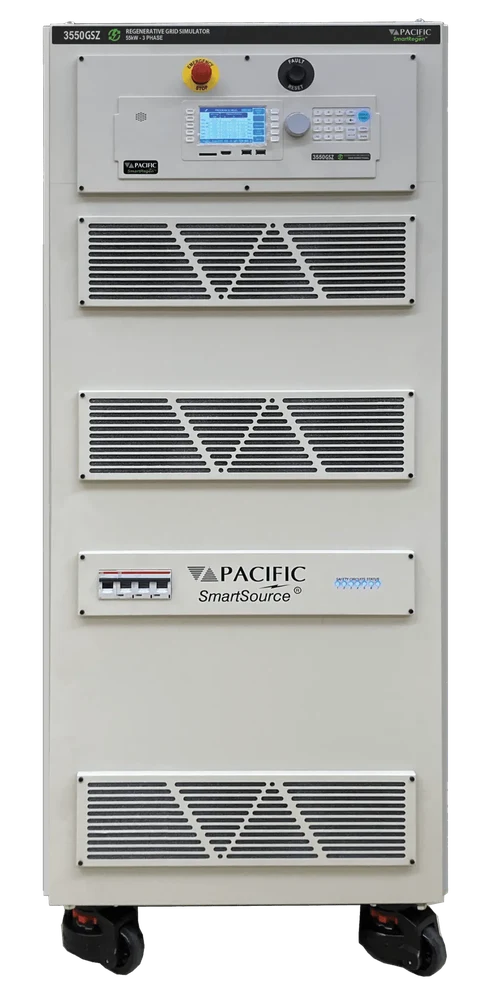

Pacific Power Source

GSZ Series

Grid simulator with PHIL interface, 30, 45 and 55kW, parallel to 550kW

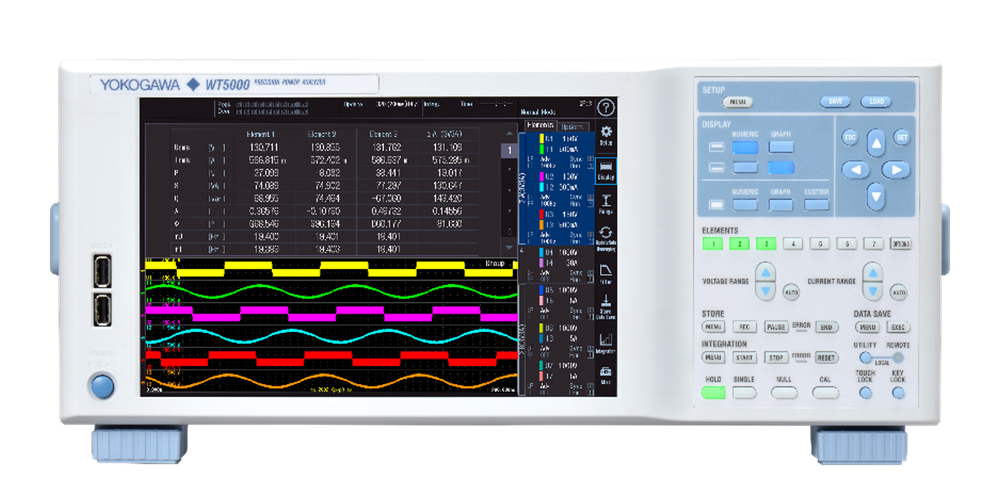

Yokogawa

WT5000

Precision power analyser, ±0.03% basic power accuracy, up to seven inputs

Elektro-Automatik

EA PSI 10000 4U

Up to 30kW, 60V to 2000V, for solar array testing

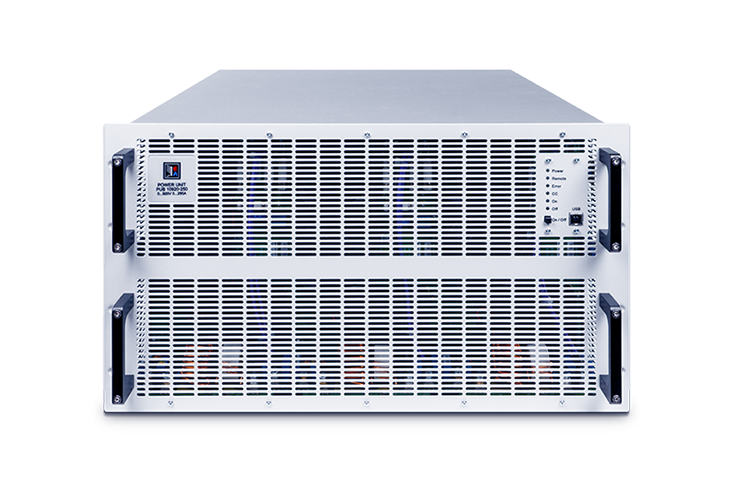

Elektro-Automatik

EA PU 10000 6U

Up to 60kW industrial DC supply with solar array simulation

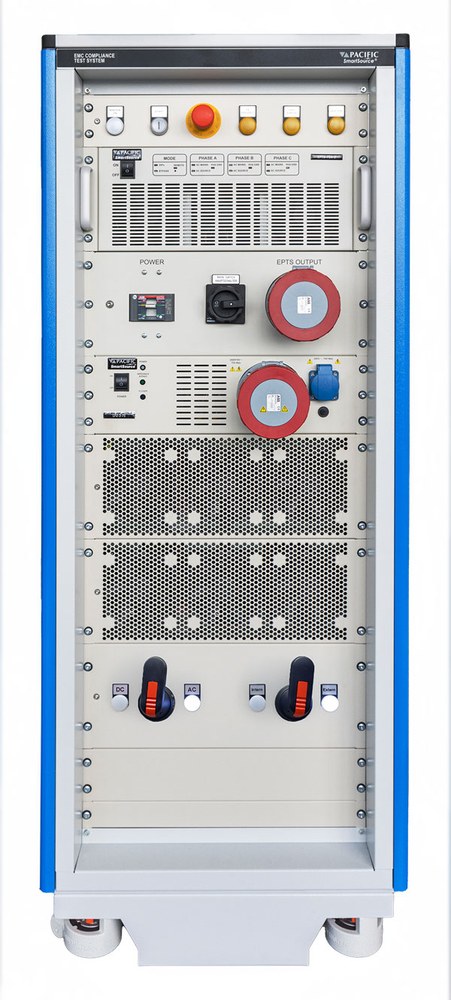

Pacific Power Source

SmartTS-HFI

Harmonics and flicker testing, up to 75A per phase

Elektro-Automatik

EA PSB 10000

Bidirectional 30kW supply for transient and fault-response testing

Elektro-Automatik

ELR 21000 30kW High Speed

High-speed regenerative DC load, 30kW, slew to 1.9A/µs for fast transient steps

Pacific Power Source

AZX Series

Regenerative four-quadrant AC/DC source, 30–55kW, to 440kW in parallel

Elektro-Automatik

EA-BT 20000

Multi-channel regenerative capacity testing

Elektro-Automatik

EA-BIM 20005

Battery impedance meter — non-destructive cell screening

Zahner

Zahner EIS

Impedance spectroscopy for degradation diagnosis

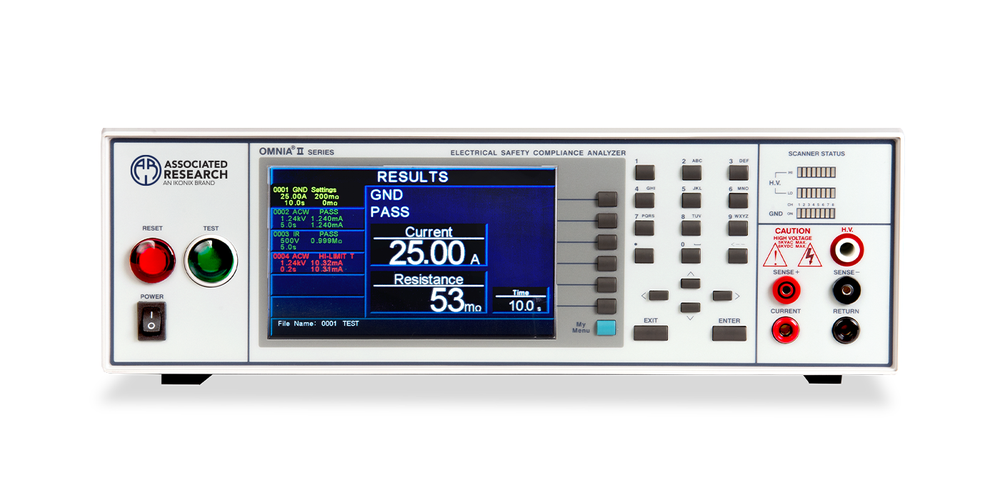

Associated Research

OMNIA II

Hipot to 5kV AC or 6kV DC, ground bond to 40A

Beyond the diagram

Calibration, rental and applications support

Test equipment is only as useful as its last calibration. We calibrate power analysers, sources and safety testers in our own laboratory, rent grid emulators and DC sources for certification campaigns, and support you in choosing an appropriate test configuration for your products.

What testing does renewable and storage equipment need before it connects?

Equipment that exports power to the network, such as PV and battery inverters, storage conversion systems, wind converters and bidirectional EV chargers, is typically tested at several stages. R&D teams characterise efficiency, control behaviour and power quality. Production lines run end-of-line and safety checks. Before connection, the equipment needs evidence that it behaves as the network operator requires. That usually means a regenerative source that can stand in for the grid, a DC source that can stand in for the array or battery, and accurate measurement at the point of common coupling.

In Great Britain, generation connecting to distribution networks is covered by Engineering Recommendations G98 and G99 from the Energy Networks Association. Depending on the equipment and its type, the tests can include loss-of-mains protection, voltage and frequency protection, fault ride-through, frequency response, and harmonic and flicker emissions to the IEC 61000-3 series. For export markets, EN 50549-1 and EN 50549-2 apply in Europe, and IEEE 1547.1-2020 and UL 1741 SB in North America. Check the current edition of each document and your network operator's requirements before you fix a test plan.

Grid connections are a live issue in Great Britain. The National Audit Office reported in September 2026 that the share of projects offered a connection when they wanted one fell from around 64% in 2019-20 to around 16% in 2023-24, and the government has since announced plans for Great British Grid to speed connections up. If connection dates move forward, compliance testing can become the critical path. Tell us your equipment rating, target markets and timescale, and we'll support you in choosing an appropriate test set-up.

Read the article: what Great British Grid could mean for compliance testing →
